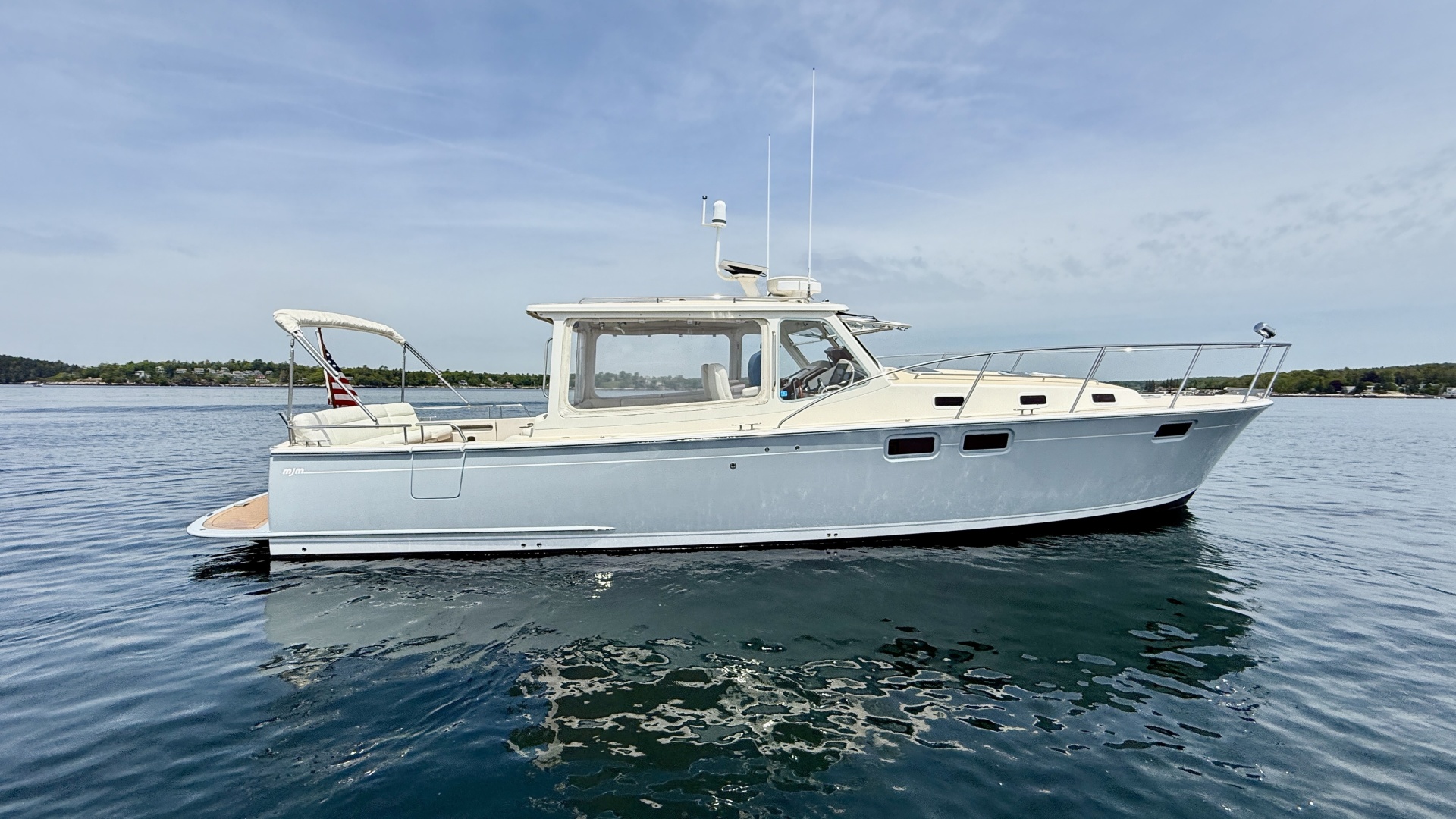

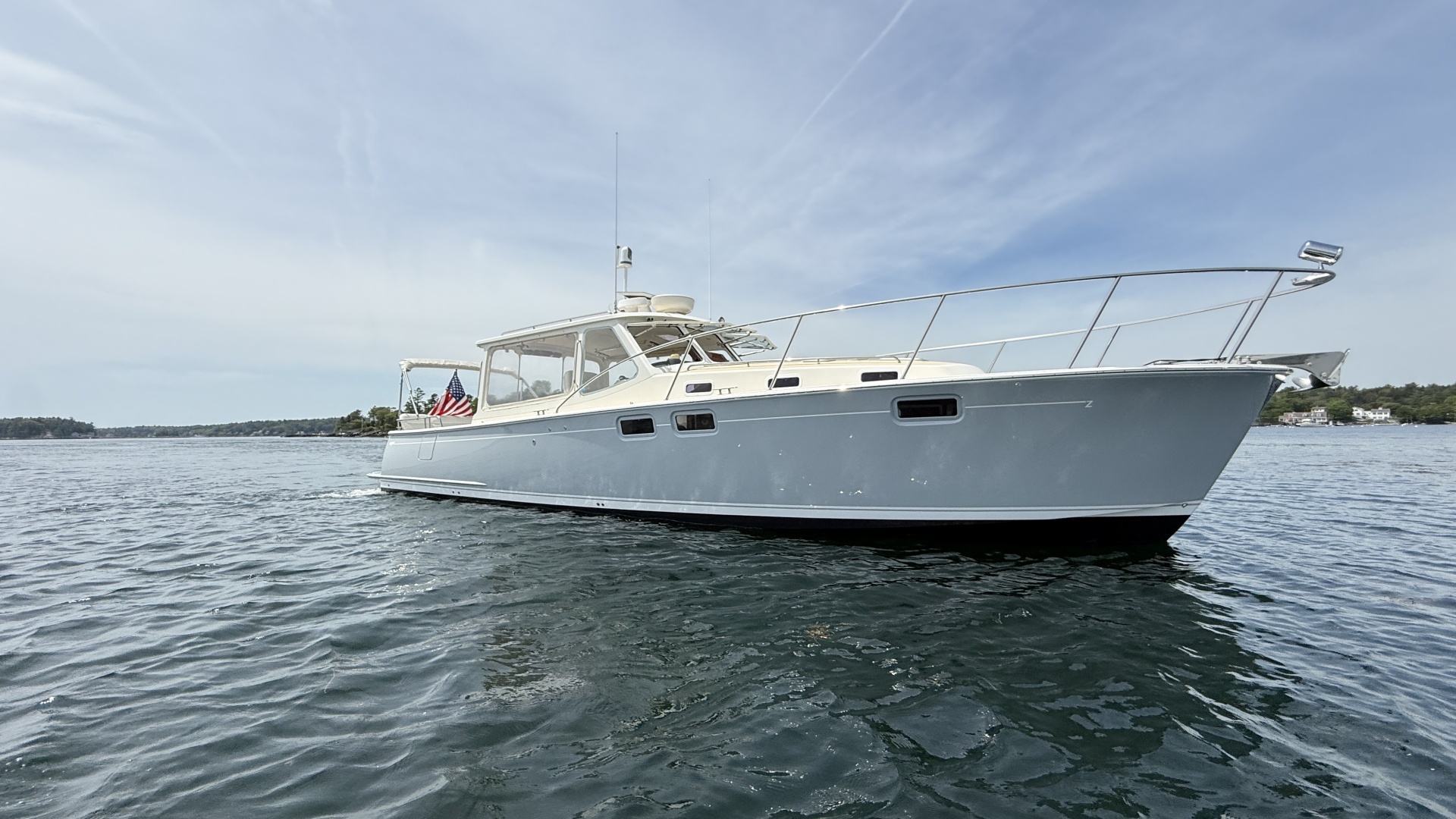

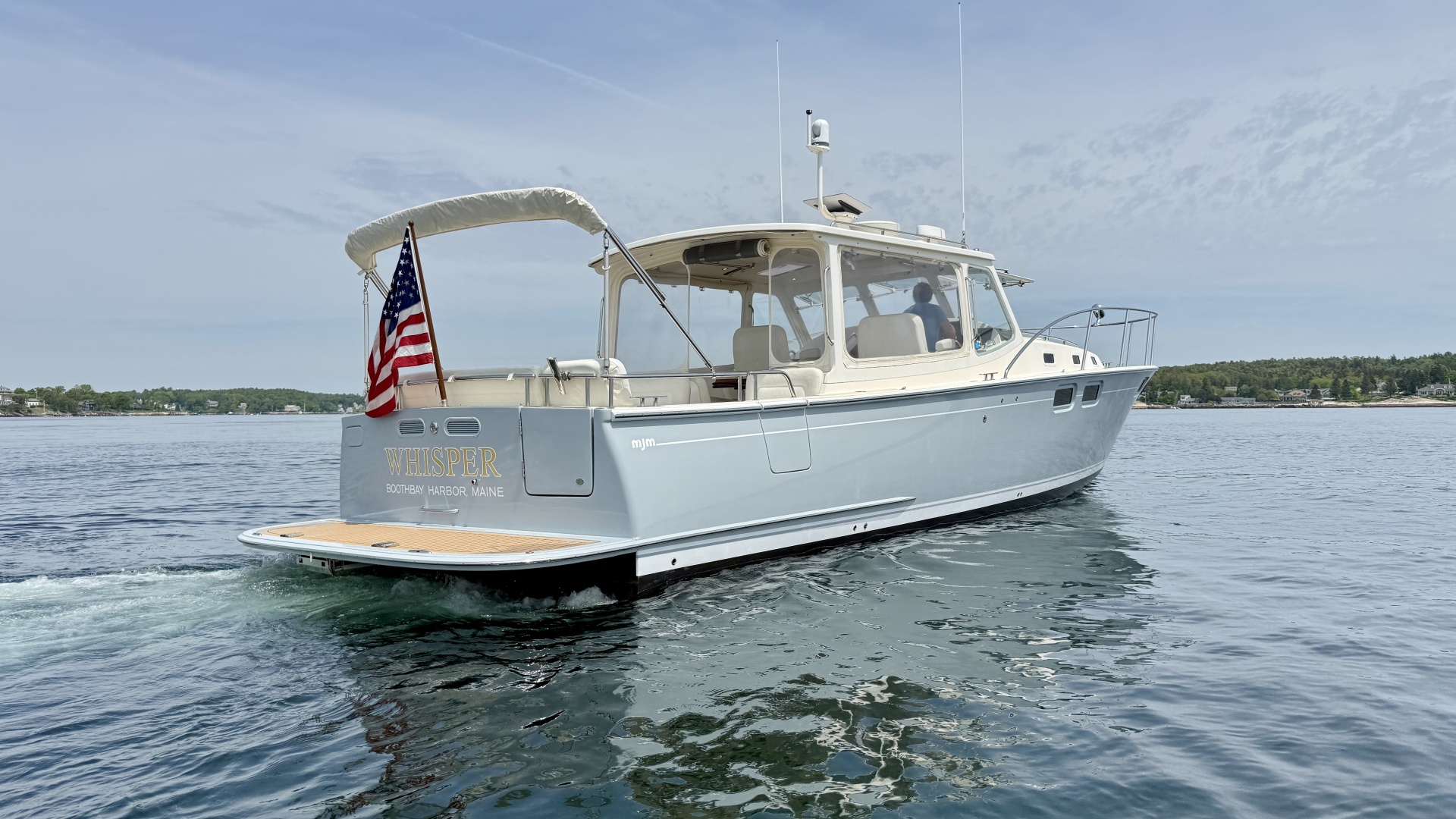

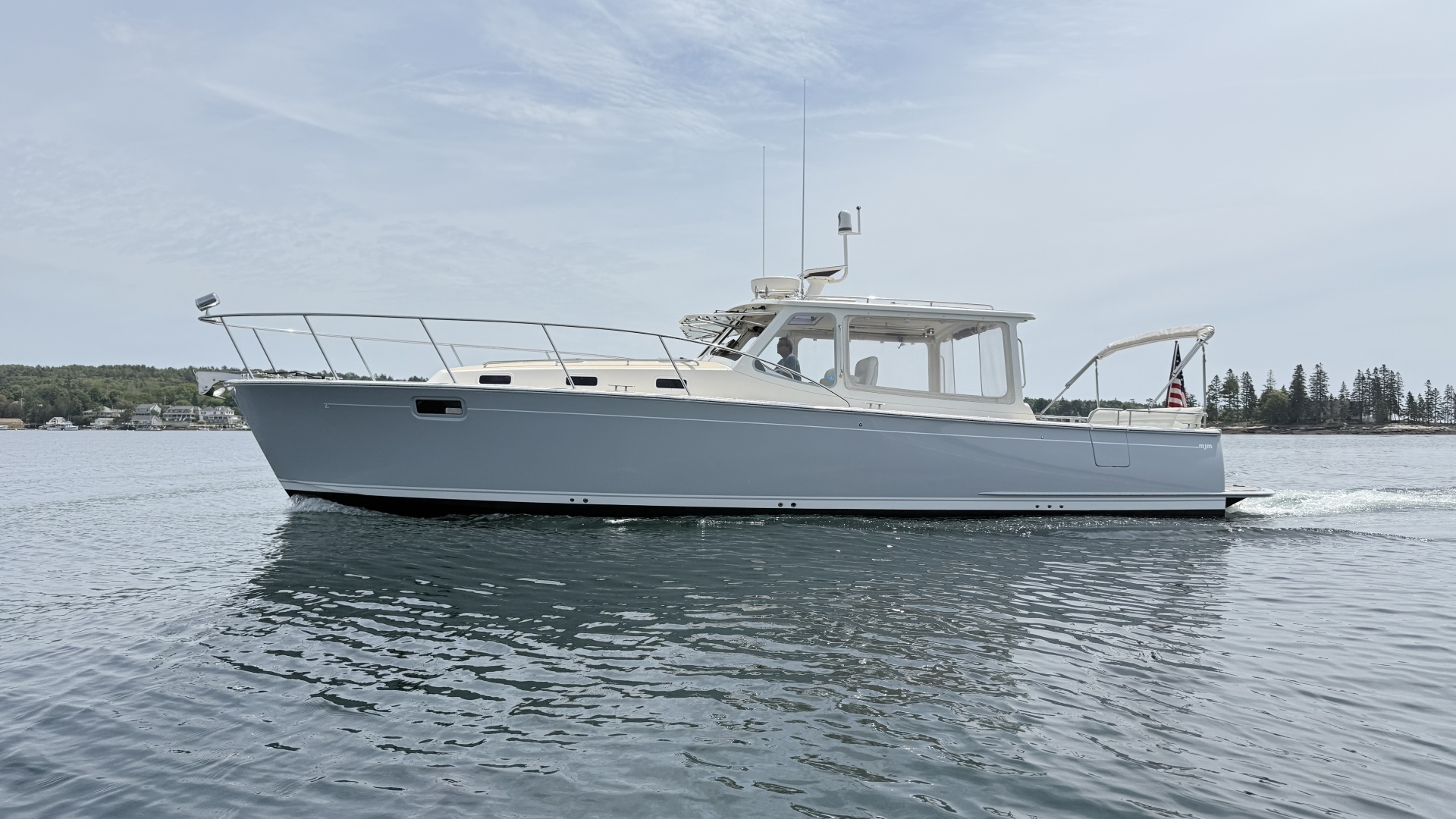

2016 MJM 40z equipment with the following factory and custom options:
Colors:
- Awlgrip in Kingston Grey with White Boot Stripe (February 2023)
- Helmdeck and cockpit cushions in Ultraleather Brisa "Polar" (February 2019)
- Interior cushions in Ultraleather Brisa "Distressed Buckskin"
- New Seat and Bench Covers made by Hallett Sails (June 2024)
Deck:
- Powered front windshield actuators
- Port/starboard teak rod holders in pilothouse ceiling
- Pilothouse privacy/sunshade curtains
- Isenglass Professionally Cleaned and Polished June 2023
- Esthec synthetic teak decking in Biscuit with black seams, pilothouse/aft cockpit/swim platform
- Cockpit bimini with storage boot
Propulsion:
- Twin Volvo IPS 500 370 hp diesels (992 Hours as of 05/24/2025)
- - 1000h Service Completed June 2025
- - Port Alternator Rebuilt June 2025
- - Pod Seals Replaced February 2024
- - Starboard Gear Cooler Replaced May 2024
- - Port and Starboard Fuel Coolers Replaced May 2023
- Complete Spare Set of IPS Propellors with Prop Speed
- Cruising speed: 30 kts
- WOT: 33 kts
Systems:
- Solar System - 2 Solbian 240w Flexible Solar Panels and 2 Victron Solar Charge Controllers (June 2024)
- Seakeeper 5 gyrostabilizer
- Northern Lights 5 kW generator
- 32,000 BTU air conditioning (one zone for interior, one zone for helmdeck)
- Wallas diesel heater for helmdeck and interior
- 26" LED SmartTV in forward stateroom
- 32" LED SmartTV in helmdeck
- Starlink (April 2023)
Instrumentation/Electronics:
- Raymarine E165 HybridTouch plotter/radar/MFD
- Raymarine E95 HybridTouch plotter/radar/MFD
- Raymarine 4KW HD radar
- Raymarine 216 VHF with DSC
- Raymarine Autopilot with upgraded P70r control head
- Raymarine AIS 650 transceiver
- FLIR t-303 infrared nightvision system
- Sirius satellite weather integrated into chart plotters
Miscellaneous:
- Nautley Davit System
- Amphibian Pro XTreme underwater lights
- 12v cabin fans in forward stateroom and dinette
- Spare Parts Kit
- Fenders with MJM logo covers
- Docklines
- Safety gear
- 2-part folding sunpad with windshield backrest for coachroof, with bag
Standard Specifications
HULL
• Modified deep-V, offshore hull with sharp entry, 3.5:1 Length to Beam Ratio, dual lifting strakes, chine flats and 19-degree transom deadrise.
• ISO (CE Mark) Certified Category A Ocean
• Strong & light epoxy wet prepreg composite with Eglass and 1” CoreCell closed-cell core
• Solid keel, stem, and transom corners backed by a structural grid using unidirectional E-glass/epoxy GRP
• Reinforcing of thru-hull and hardware attachments areas with solid glass or Penske-Board.
• Side entry doors onto cockpit sole (2)
• Transom door to swim platform.
• Transferable 10-year osmotic blister warranty.
• Bilges painted with smooth, gloss-white finish.
• PVC guardrail and SS quarter-guard rub strips.
• Hull ports (4) in forward cabin and main saloon

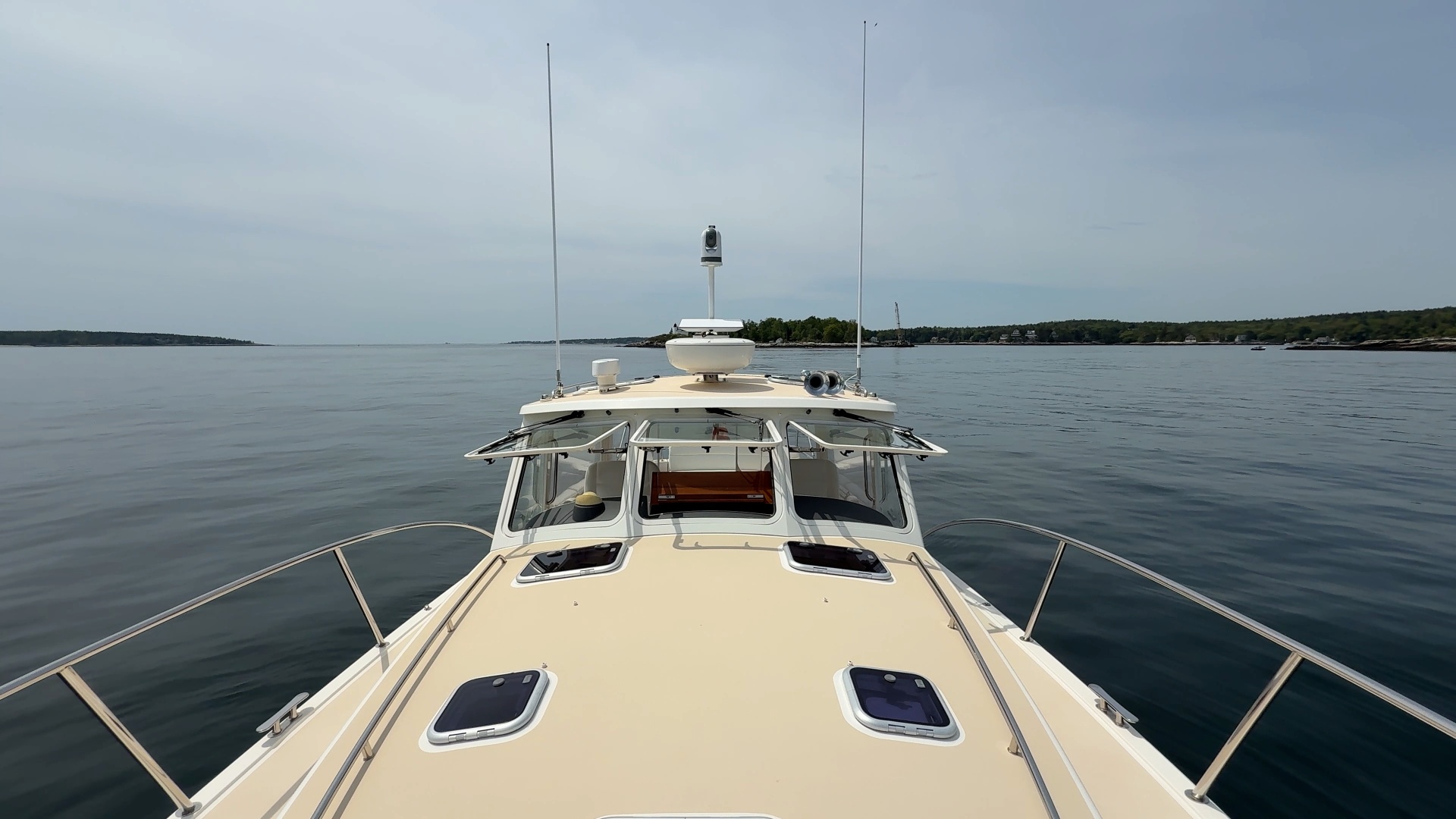

DECK
• High-tech composite under vacuum using oven post- cured epoxy impregnated, stitched biaxial E-glass with a 1” Alcan Airex C70 closed-cell PVC foam.
• Insignia white gelcoat deck w/sand- textured non-skid in Standard colors of Buff, Gray or White.
• Molded swim platform with recessed dinghy cleats.
• Custom Armstrong SS retractable swim ladder
• Backing plates for cleats and stanchions of epoxy G- 10 pressure-laminated composite.
• Hull and deck fused as monocoque structure with methacrylate adhesive with shear strength of 3,000 lbs. per square inch w/mechanical fasteners on 8-10” centers.
• 316L SS handrails (17) on pilothouse corner posts, hardtop, cabin top, under hardtop, aft seat backs,
galley overhead, on console and companionway entrance.
• 29” cockpit guardrail and 24” bow rail of 1.25” 316L stainless with spotlight and teak burgee staff for 16” hoist.
• 3’x5’ National flag with teak staff and retainer pin.
• Muir anchor windlass with deck and cockpit controls
• Auto-launching polished stainless Lewmar claw anchor w/250’ of rode and 25’ of stainless chain.
• Fresh water anchor and rode washer control at helm.
• Polished stainless steel stem guard
• Molded Downeast Style windshield frame & hardtop
• Pilothouse enclosed on sides by roll-up-in-place, Strataglas curtains or optional Sliding safety glass.
• Roll-up entry curtain w/combo window/screen
• Deck drains divert dirt/soot/dew/rain into gray water system and out transom...not onto topsides.
• Custom SS multi-directional bow chocks (2).
• Systems room access hatches (3) with scuppers, overboard drains, gaskets and lockdowns. Main hatch has electric operated lift and Armstrong access ladder.
• Clear Awlcraft finished teak storage drawers w/locks
• Large pilothouse settee lockers P&S w/piston- activated lockable lids, vinyl flooring and mesh organizer bags for cords, hoses, bikes, hard luggage, dinghy & golf clubs.
• Cockpit seat lockers (P&S) for docklines, fenders & cleaning supplies with UltraLeather cushions.

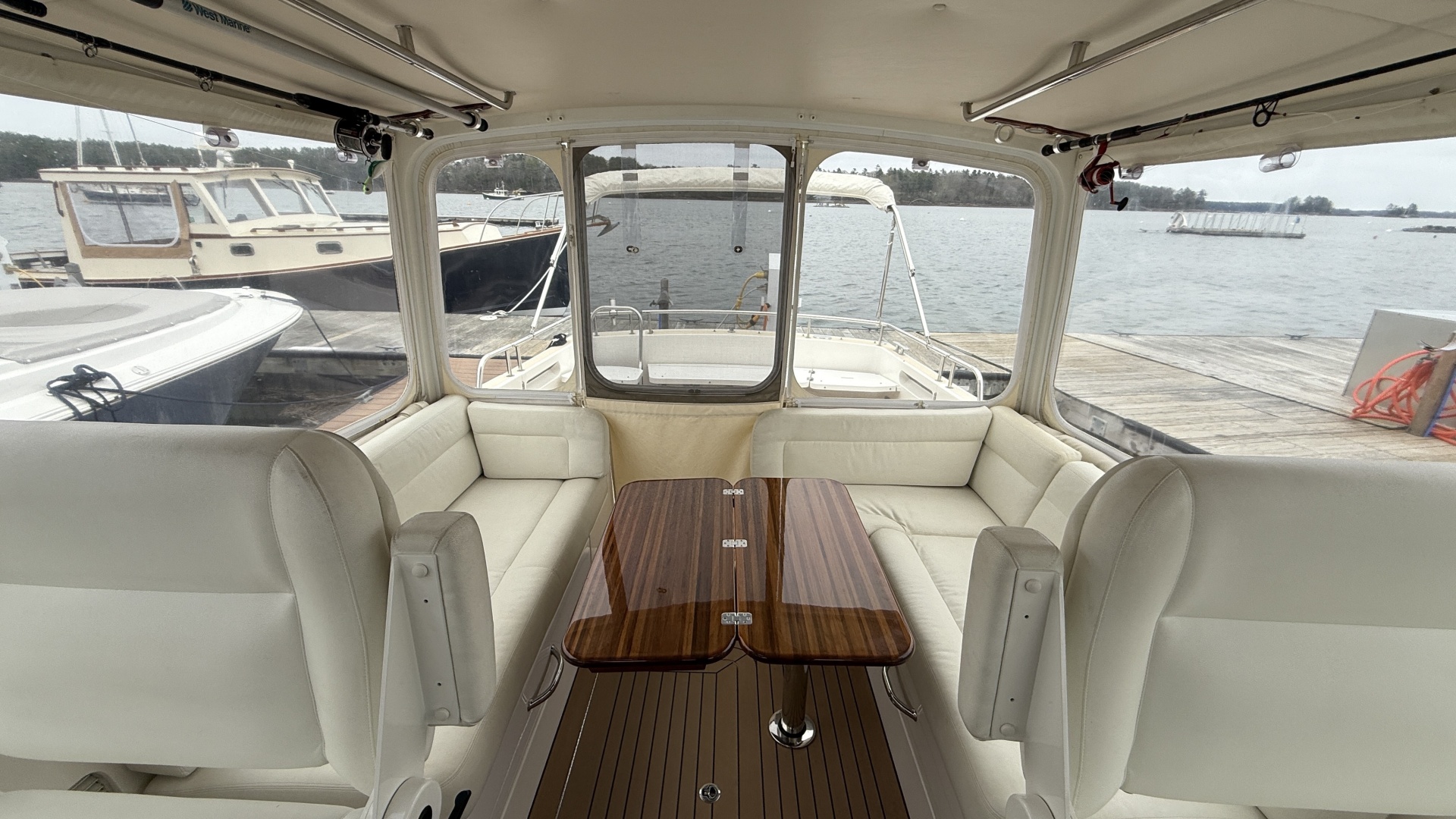

• Dual position 36x16 single-leaf gloss-varnished teak table opens to 32”wide for cockpit & pilothouse.

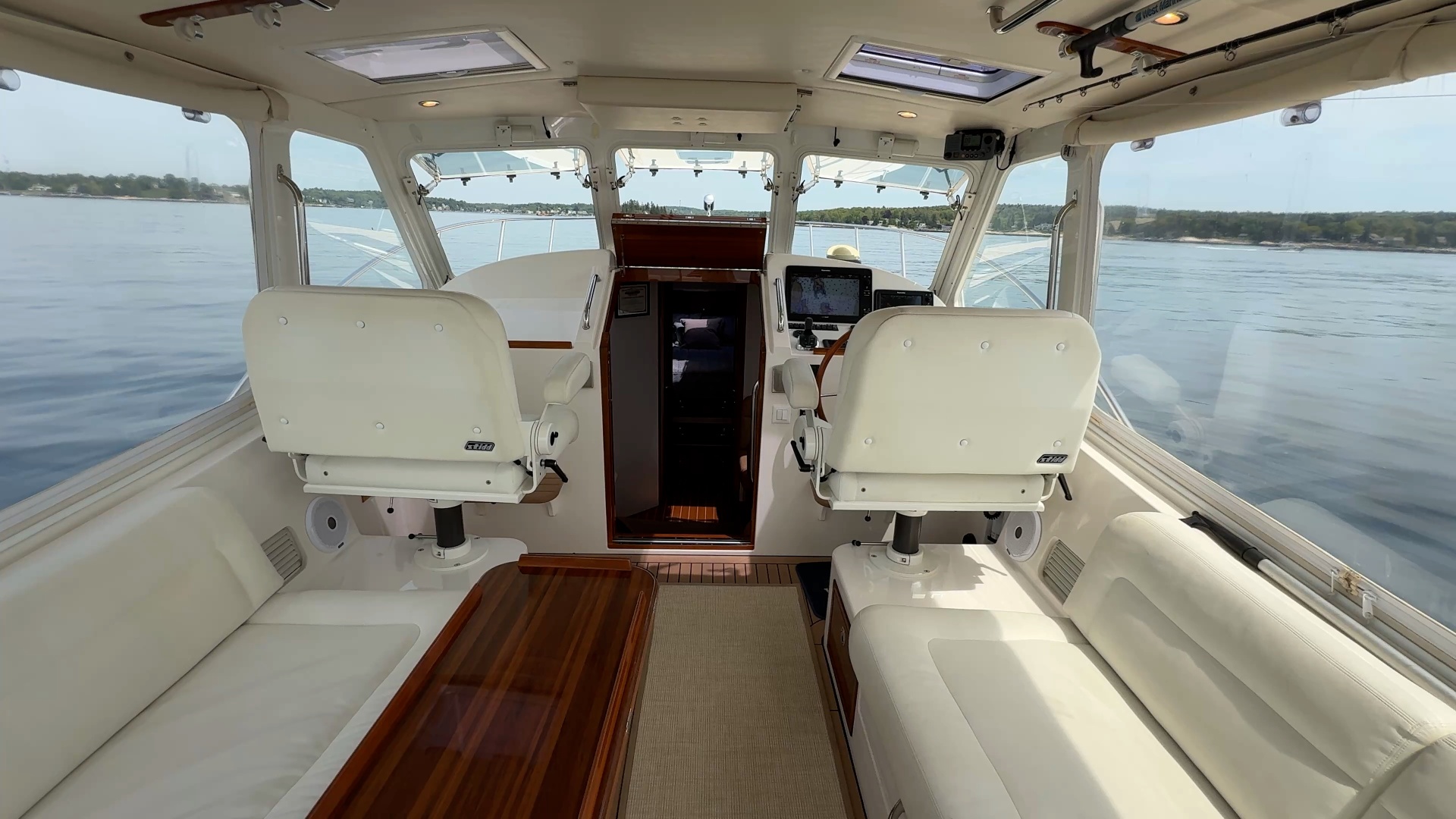

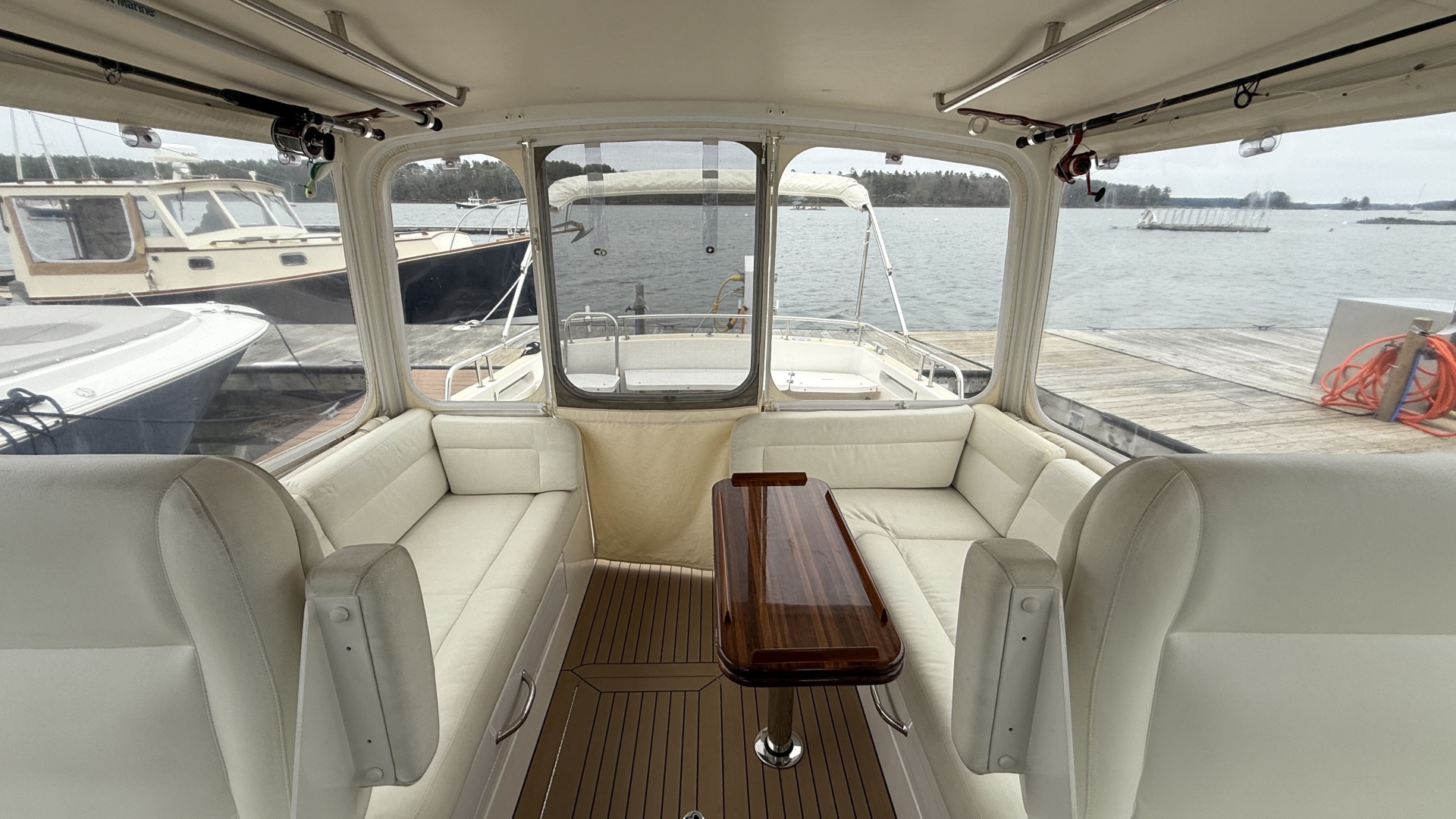

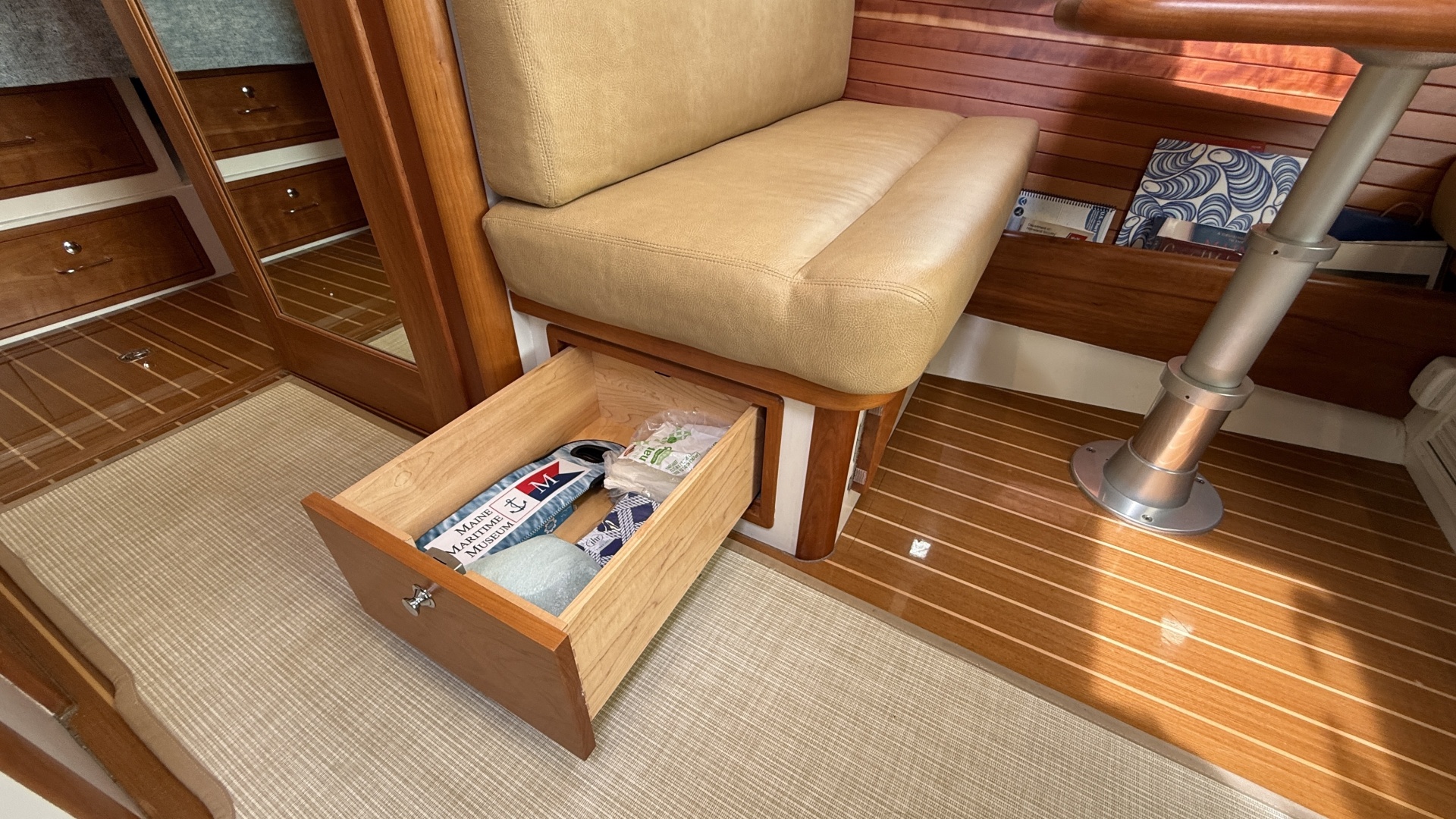

• Pilothouse settees w/UltraLeather covered memory-foam bottom cushions...convert to 6.5-foot berths.
• Drink holders (6) at piloting seats and transom seat
• 8 Lewmar overhead hatches in forward cabin (2), head, shower, main saloon (2) and over piloting chairs (2)...all with Ocean dual action shade-screens.
• 6 opening portlights in forward cabin, head, shower, galley and saloon.
• Ocean Air combination screen/shades on hatches and pull shades on portlights.
• Gloss-varnished, lockable (from inside & out) sliding teak companionway door with 4-section hinged cover with chartbook retainer fiddle.

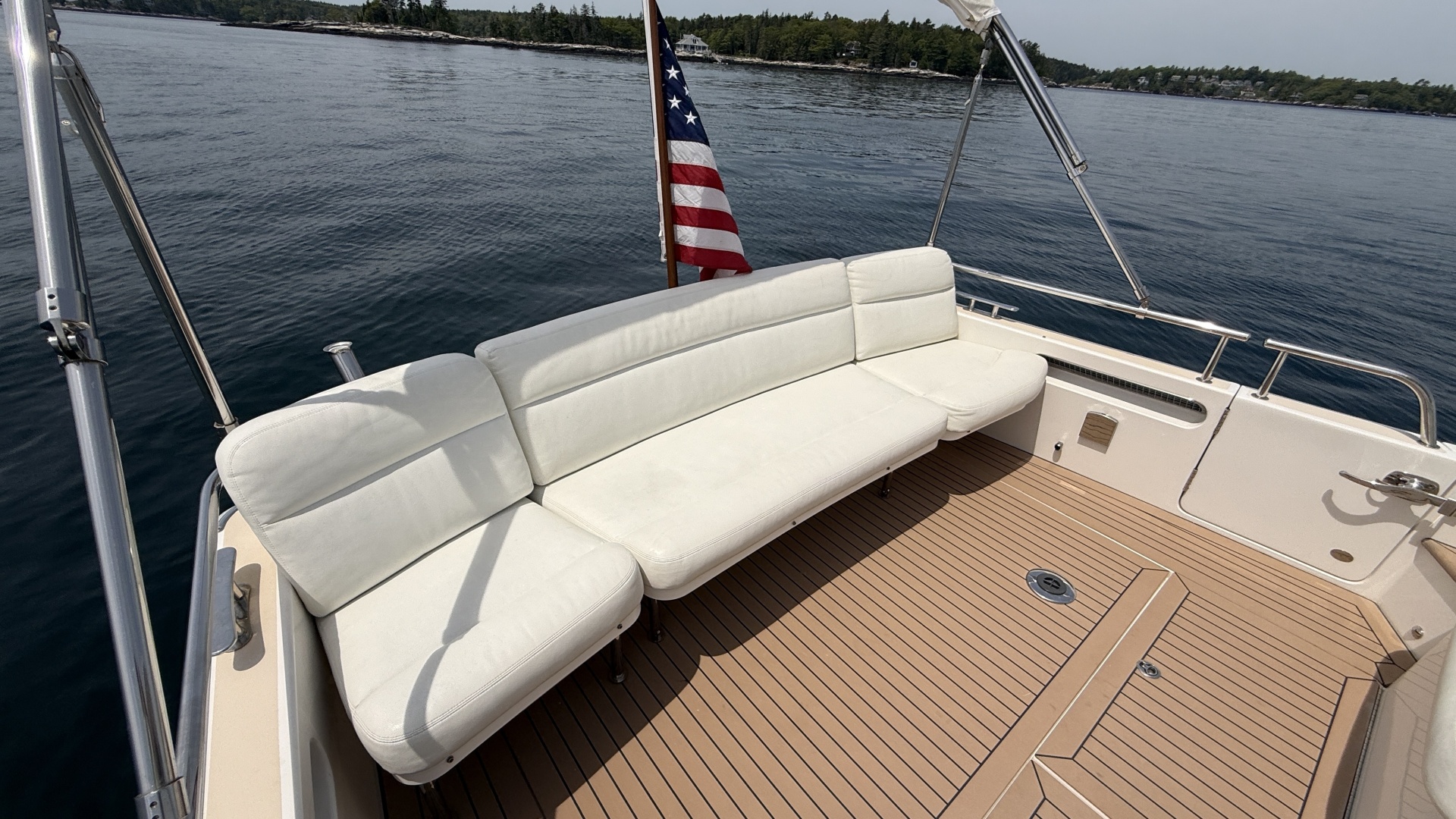

• Movable SS Cockpit Chair (1) with UltraLeather bolstered cushions at side of transom seat.
PILOTING & NAVIGATION
• Matched Stidd 500 30” wide Admiral low-back, recliner piloting chairs in UltraLeather which lower and swivel to create social seating for 8 persons.
• 24” Edson destroyer wheel with varnished teak rim

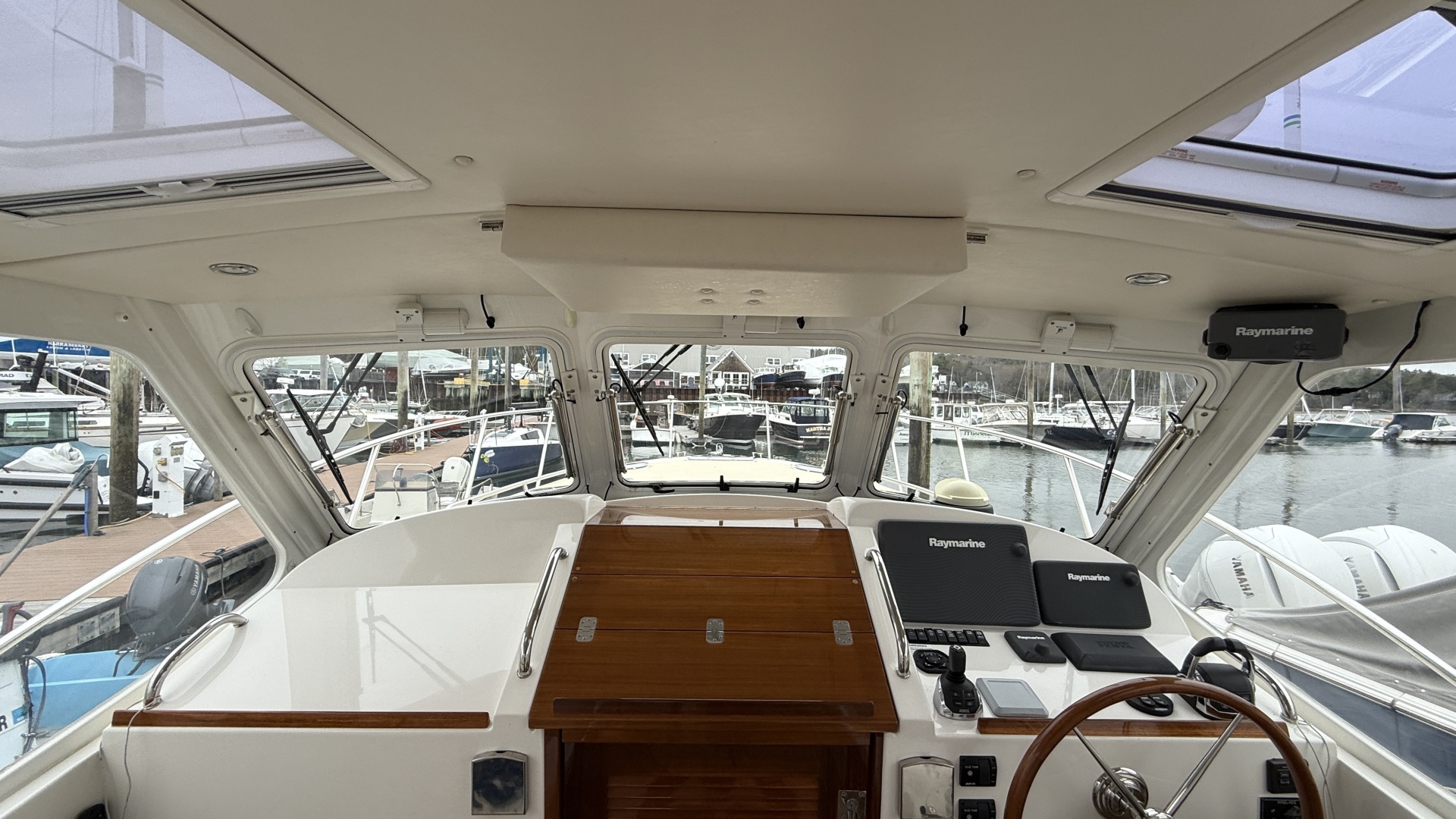

• Fully-opening windshields (3) for air flow in warm climates and better visibility in fog or at night. Electric push- button option available.
• Windshield wipers & washers
• 320,000 CD LED bowrail mounted spotlight.

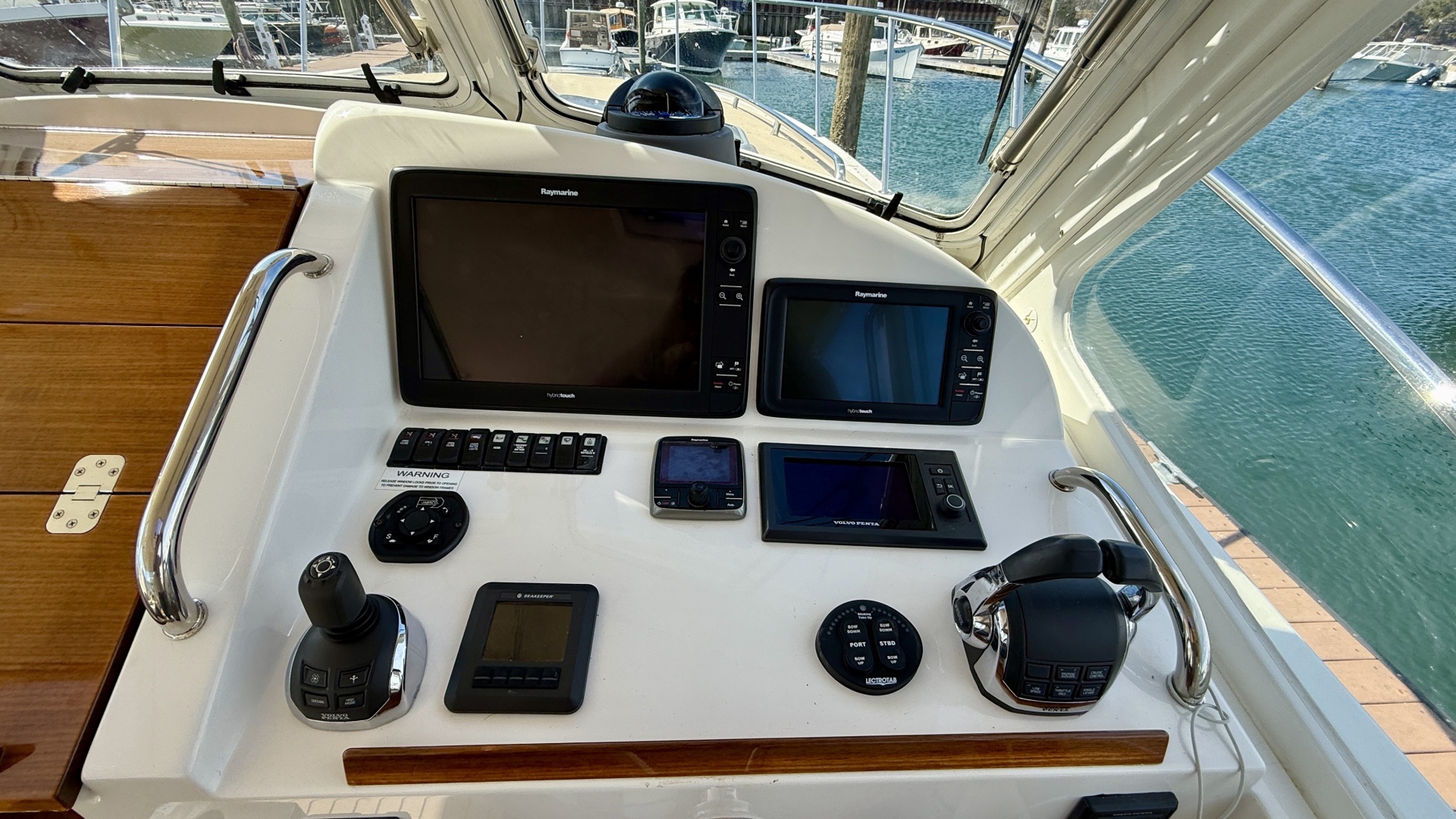

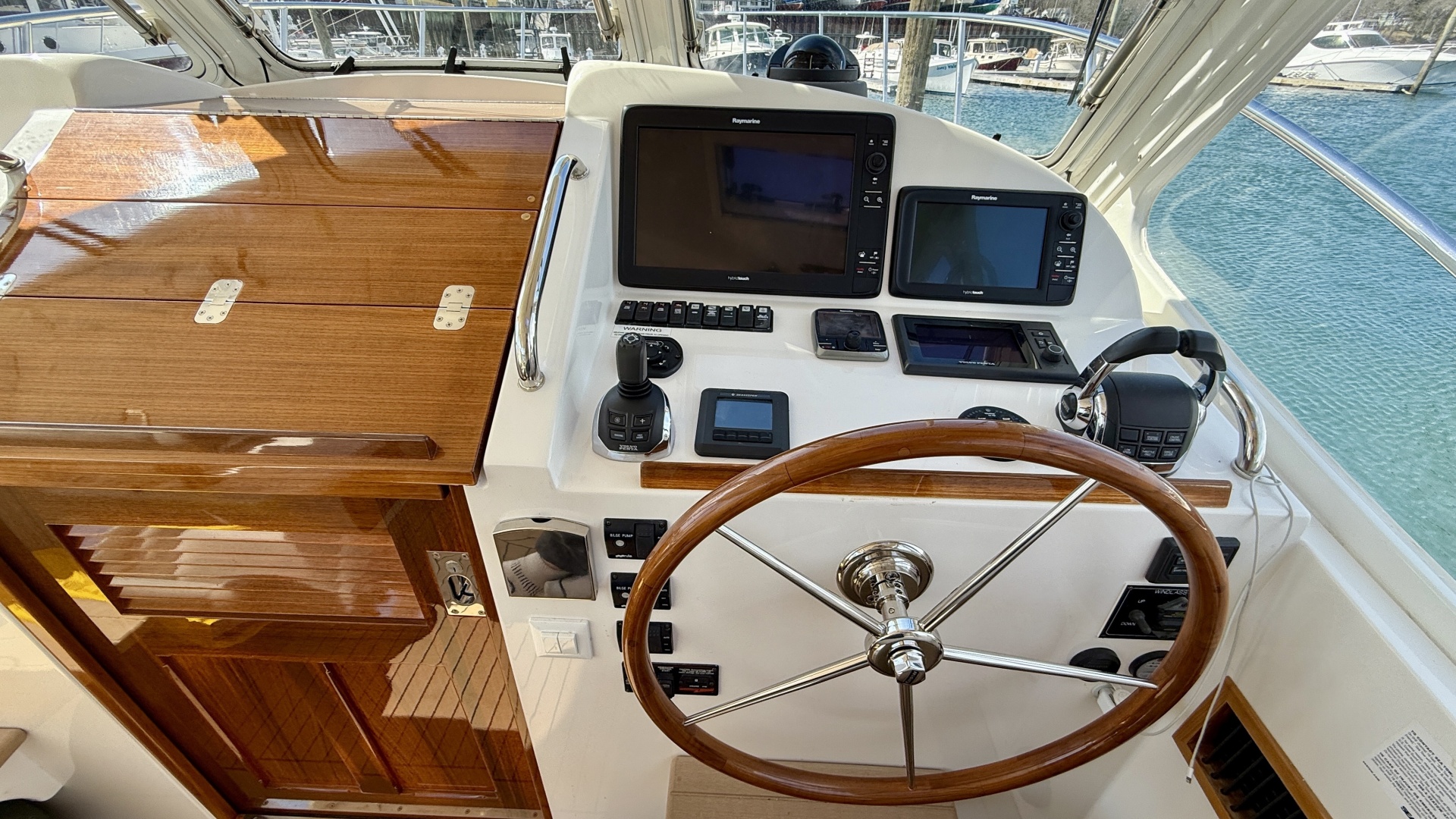

• Bi-level piloting console (P&S) with gray anti-glare
• Kahlenberg D-OA air horn w/auto fog/anchor signal
• Ritchie SS-2000 4.5 Supersport compass.
• Raymarine HybridTouch MFD's (16" and 9")
• Raymarine i70s Display for large depth readout.
• Raymarine 4KW HD Color Radar w/dome
• Raymarine Ray 63 VHF on overhead
• Raymarine AIS 650 tracking system.
- Raymarine autopilot with P70 control head
Propulsion
Twin Volvo-Penta D6 IPS 500 joystick docking system with DPS Station Keeping.
• Volvo-Penta Line Cutters between Duo Props
• Lectrotab Electric Trim Tabs
• Engine spares kit and service manual.
• UL approved fuel shutoff and fuel/air separators.
• Racor fuel/water separators with spare cartridges
• Two 175 gallon, aluminum fuel tanks with fuel level sensors and interconnect line with shut-off valves.
• Parker Class 1 steel-braid-reinforced, fuel hoses.
• SS engine air intakes (4)
• Dedicated sump below engine and transmission.
• Seafire automatic fire suppressant system
• Custom Soundown insulated engine room.
ELECTRICAL
• Custom backlit electrical panel with 23-12v DC breakers and 12-110V AC breakers, stainless breaker guards and digital DC and AC monitors
• 110V AC system w/Victron Energy Shorepower system
w/ 2-50' white 30-Amp Hubbell cords Stainless GFCI duplex outlets (6)
• Volvo-Penta standard 125 amp alternators
• Blue Seas automatic charging relays
• Galvanic isolator
• LED cabin-reading lights (4) Overhead in galley (3)
head (2) shower (2) saloon (5) forepeak (3) and pilothouse (6). Galley, dinette, forepeak and pilothouse w/dimmers
• Courtesy lights (3) in cockpit and head.
• Engine compartment lights.
• 700-ampere hour absorbed glass-mat battery capacity with 2- Group 8D 245 AH house and 2-Group 31 105 AH engine batteries
• LED navigation and anchoring lights.
• Bonded electrical system and underwater fittings
• Serviceable wiring, bundled & numbered with Deutsch O- ring waterproof connectors.
• Dirt Devil central vacuum system
ENTERTAINMENT
• Fusion MS-AV755 stereo w/ AM-FM-CD-DVD-Bluetooth- USB-AUX2-iPod/iPhone-MTP-ARC-Pandora Sirius XM w/5 channel 1600 watt amplifier; 6-7” speakers; 2-3” speakers, 6” subwoofer in saloon and 350W amplifier.
PLUMBING
• Pressure hot/cold water with Johnson Aqua Jet Duo variable-speed water pressure pump
• 13-gallon stainless steel hot water heater.
• 100-gallon polyethylene fresh water tank
• Dock water inlet w/check-valve and PSI regulator.
• General Ecology Seagull IV purification system
• Scandvik hot/cold shower on swim platform
• High-pressure fresh water washdown in port cockpit locker w/50’ hose & nozzle.
• Jabsco Rule 1100 automatic bilge pumps (3)
• Vacuflush head system with 32 gallon holding tank w/ pump out and macerator discharge. (Head Rebuilt March 2026)
• Back-up Bosworth manual bilge pump.
• Centralized gray water discharge system
• Gray water sump w/inspection port for shower, head, icebox and AC condensate.
• Marelon non-corrosive thru-hulls/seacocks with strainers and double-clamped hose.

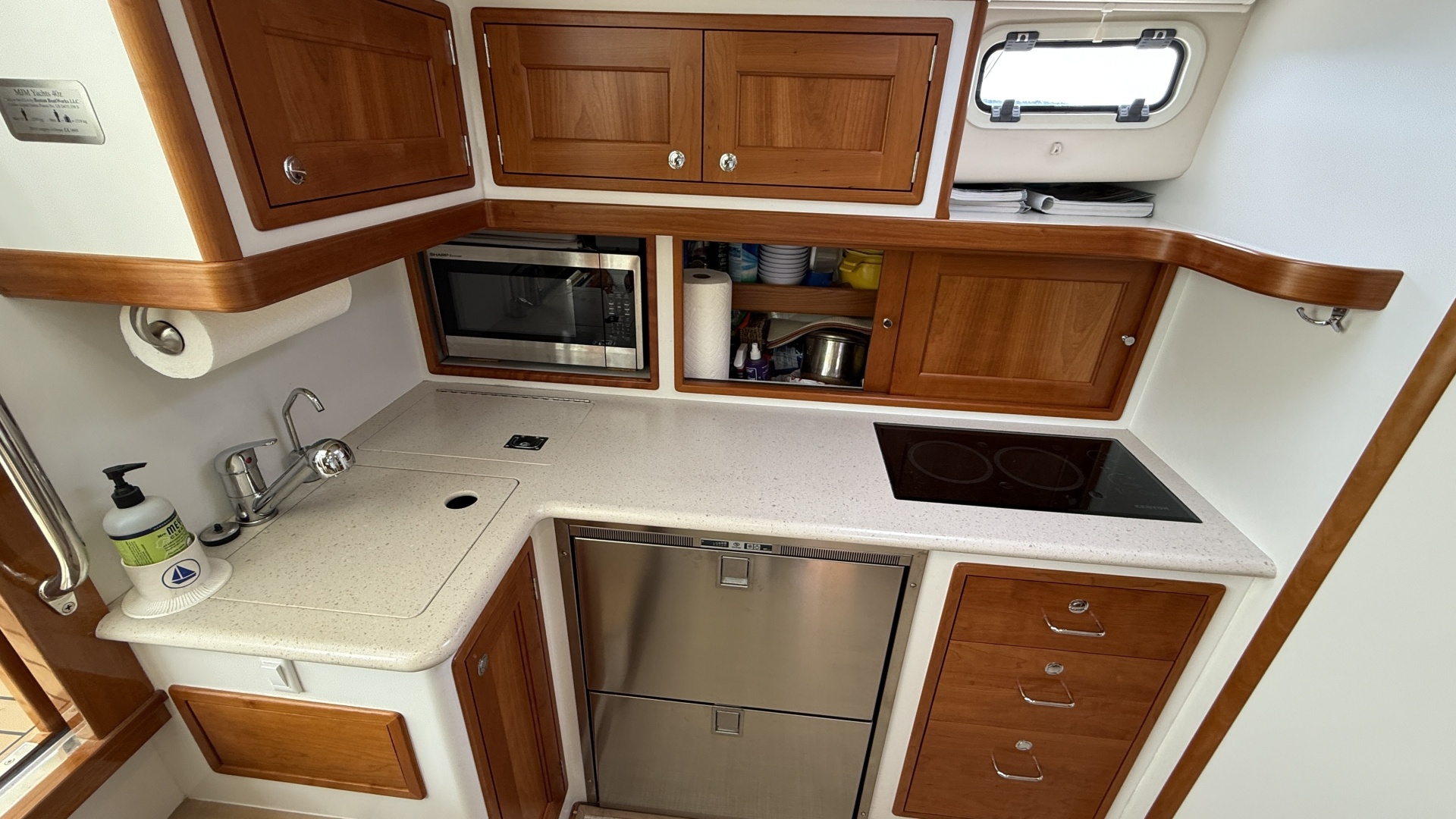

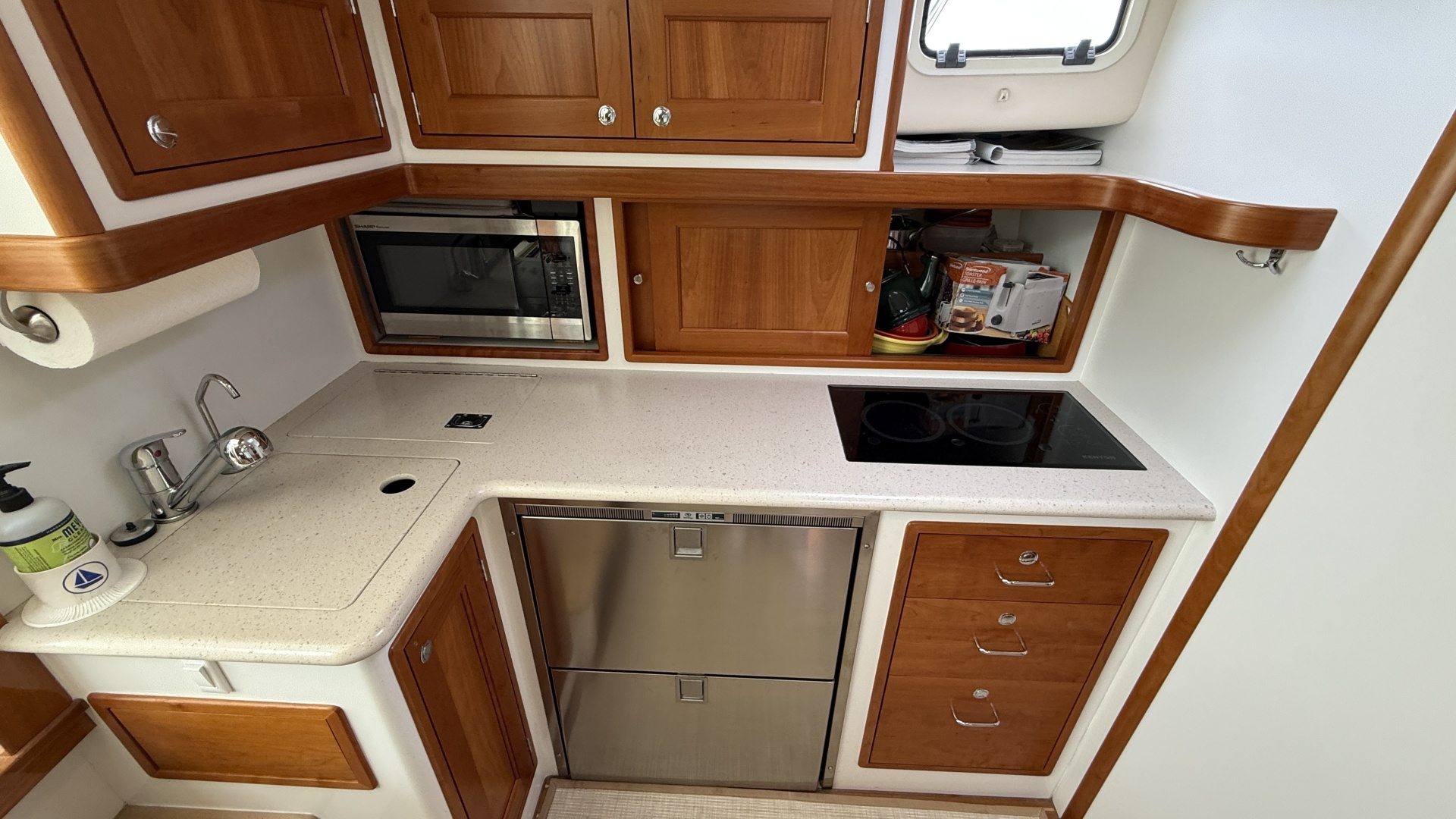

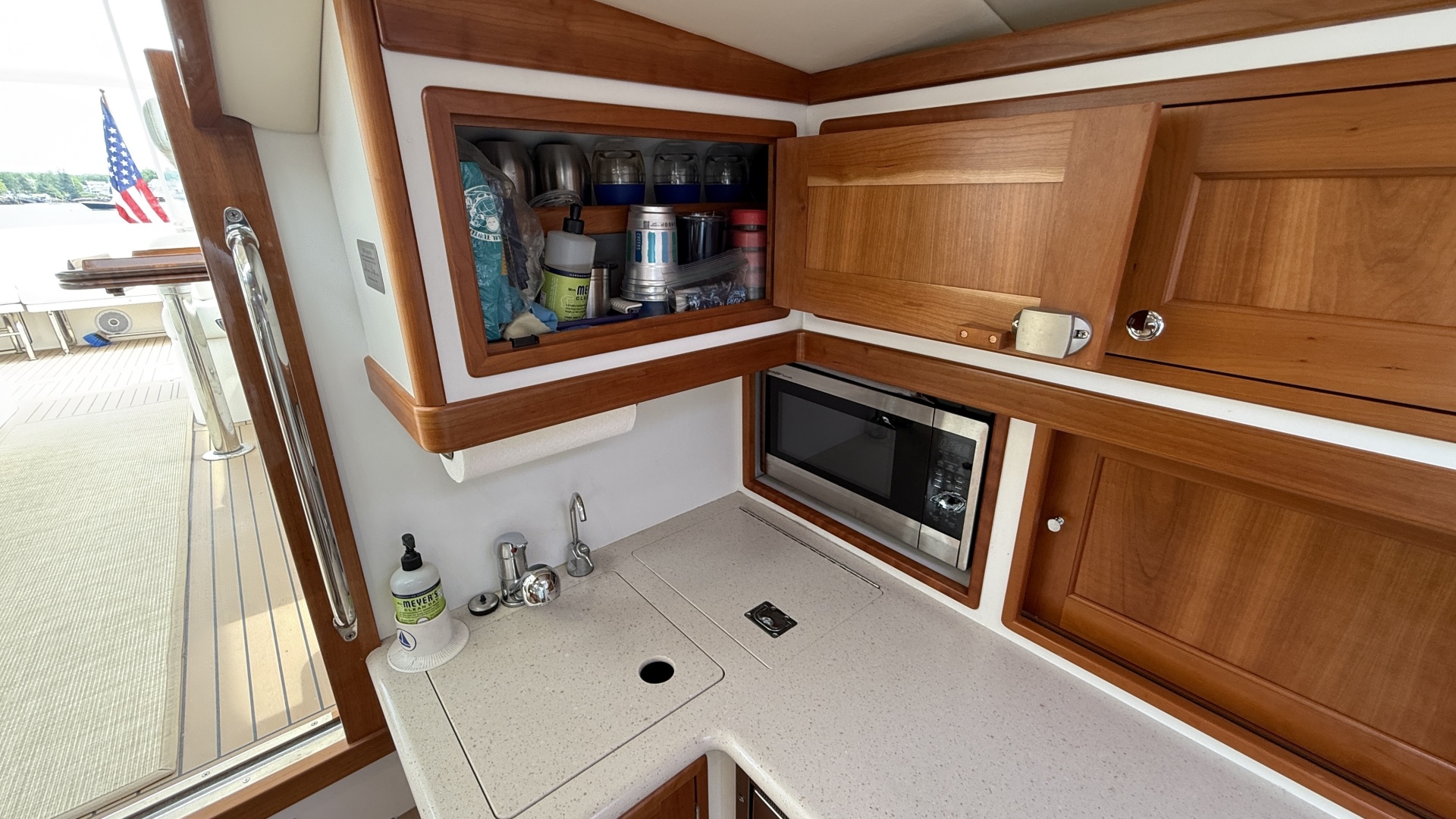

GALLEY

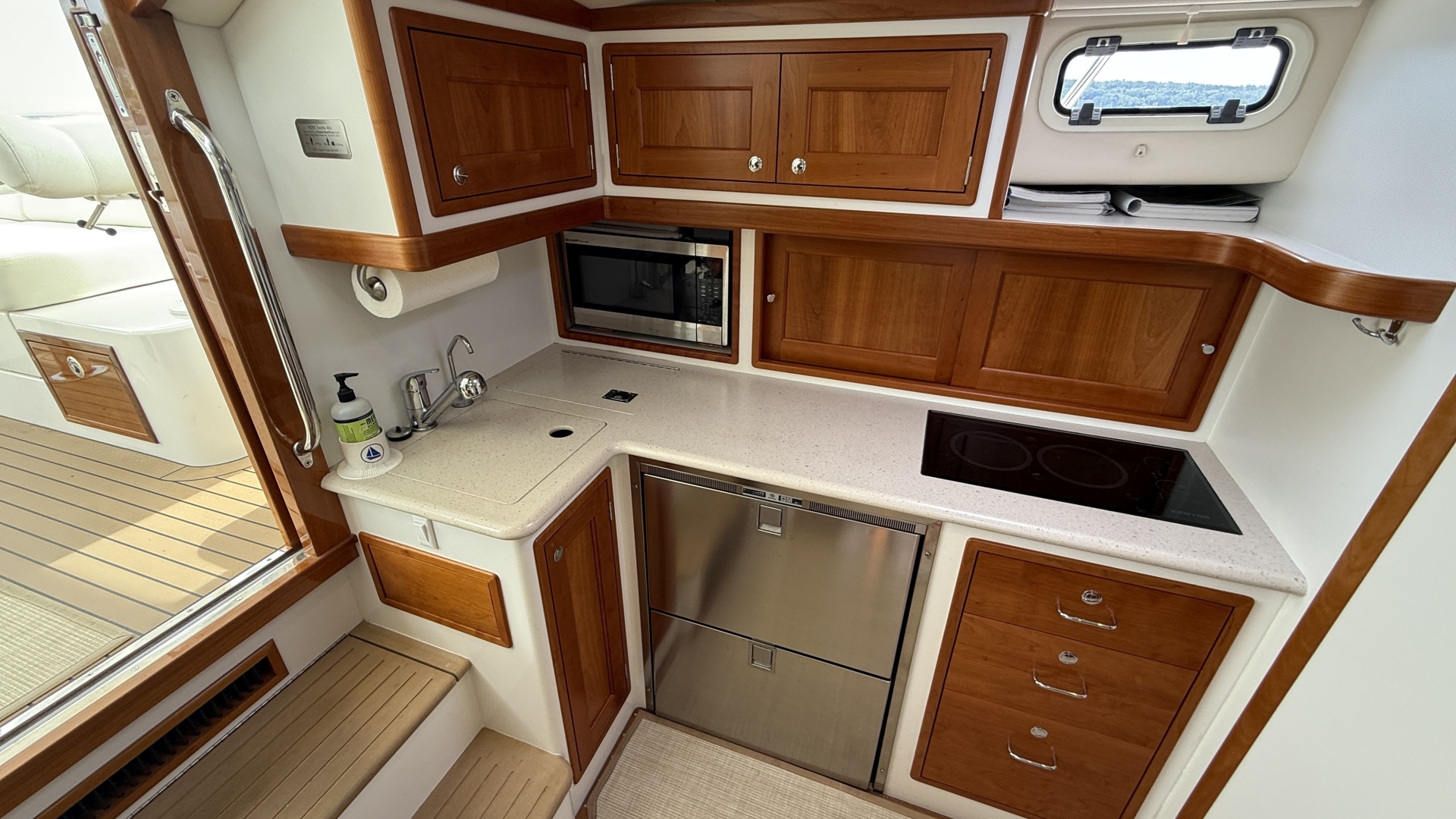

• Corian counter-top with framed, paneled cherry cabinetry with push-button locks & drawer handles and upper storage cabinets with offset inner shelf.

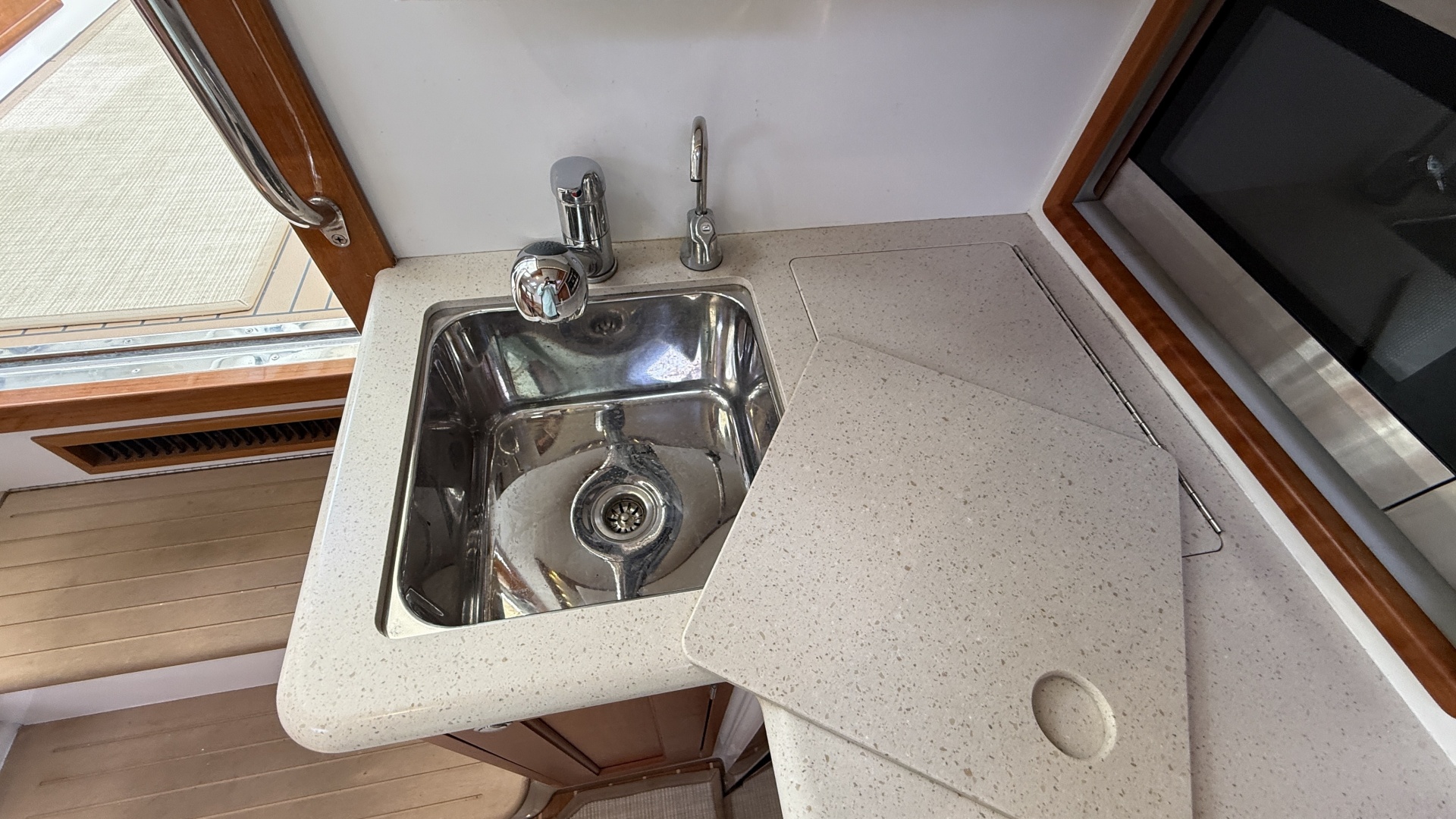

• Recessed polished SS sink with removable bamboo cutting board cover and Scandvik pullout faucet.
• Flatware & utensil drawers (3) w/organizer tray.

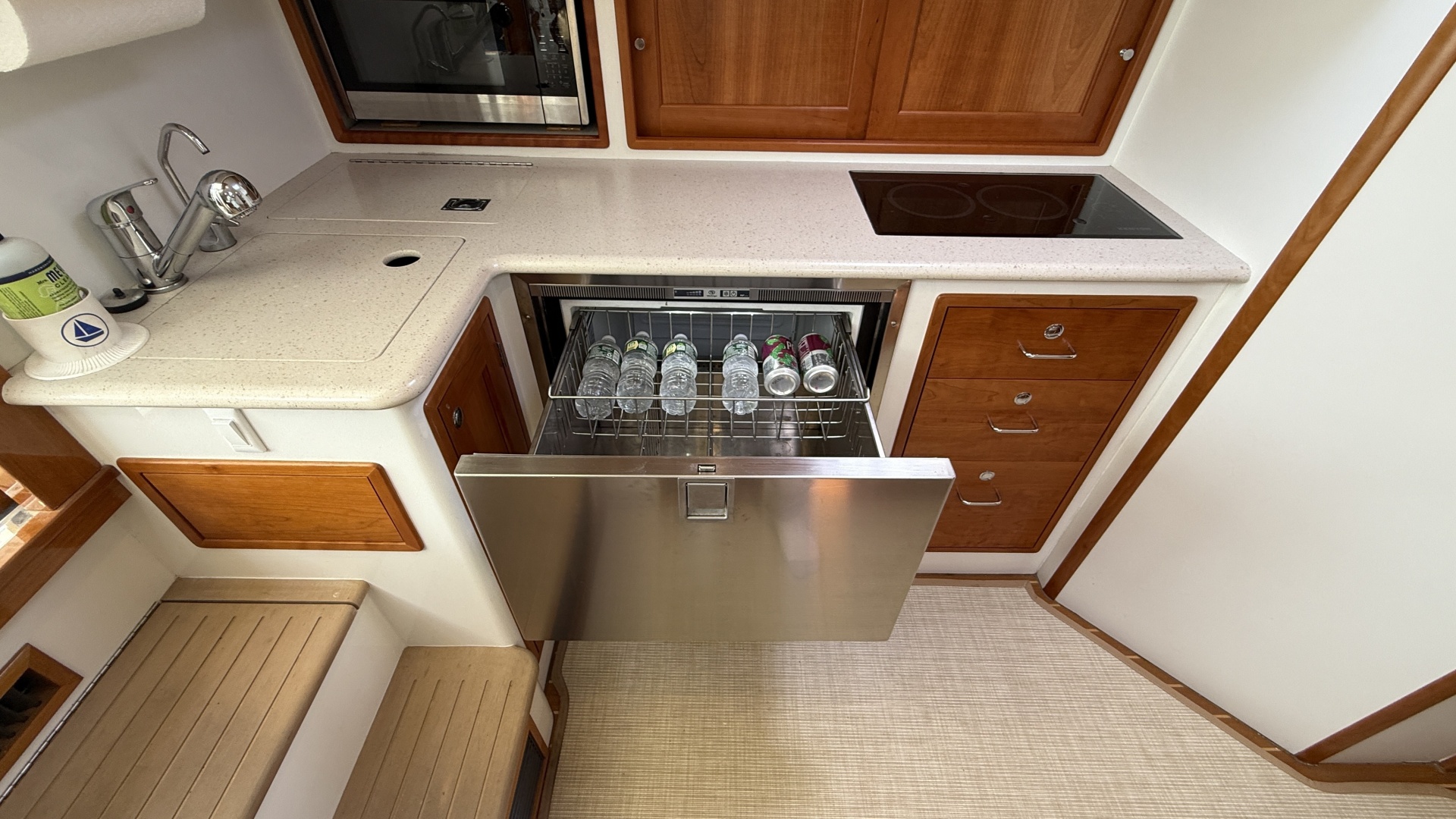

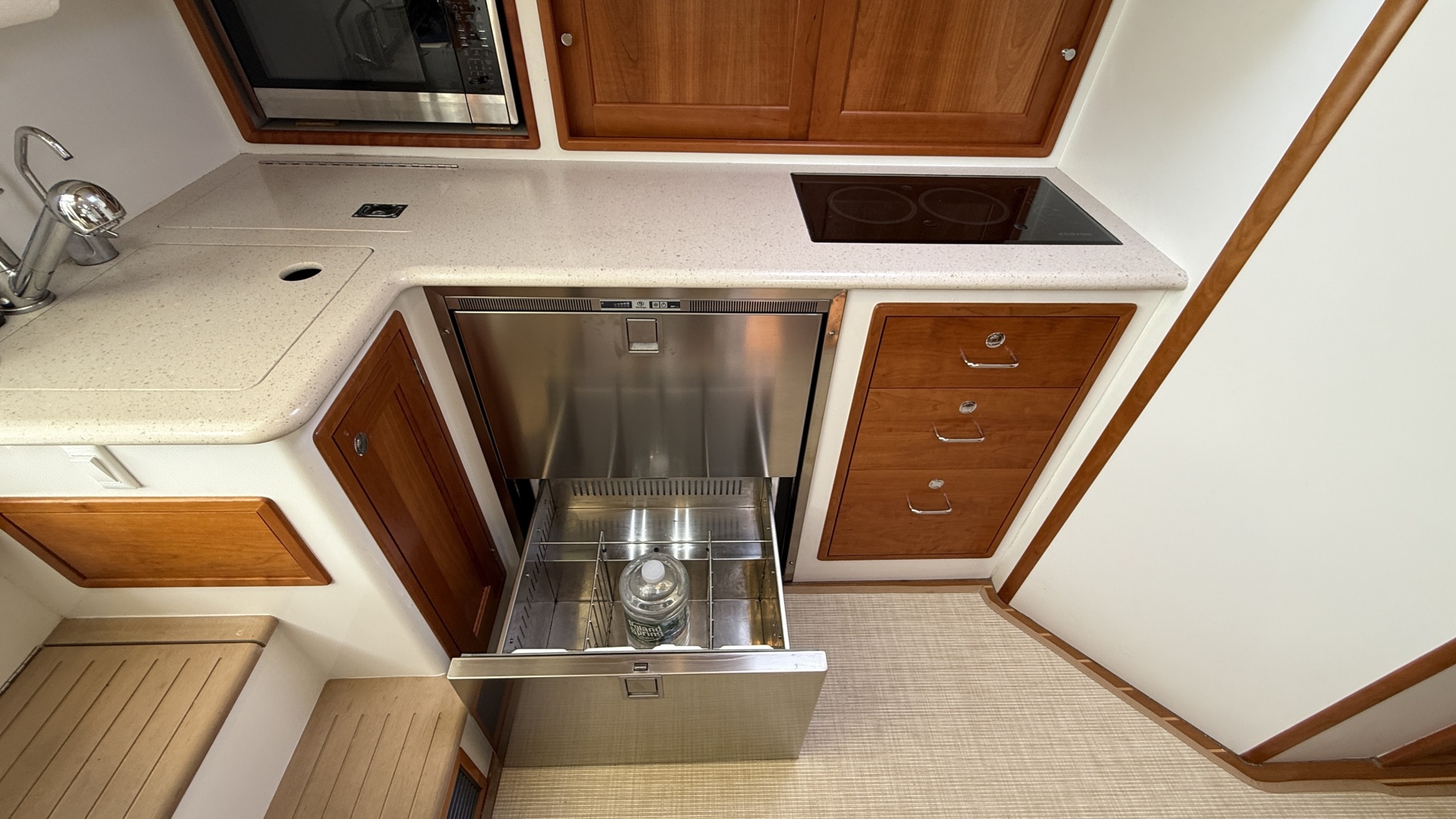

• Stainless 5.5 cu. ft. 2-drawer reefer/reefer.

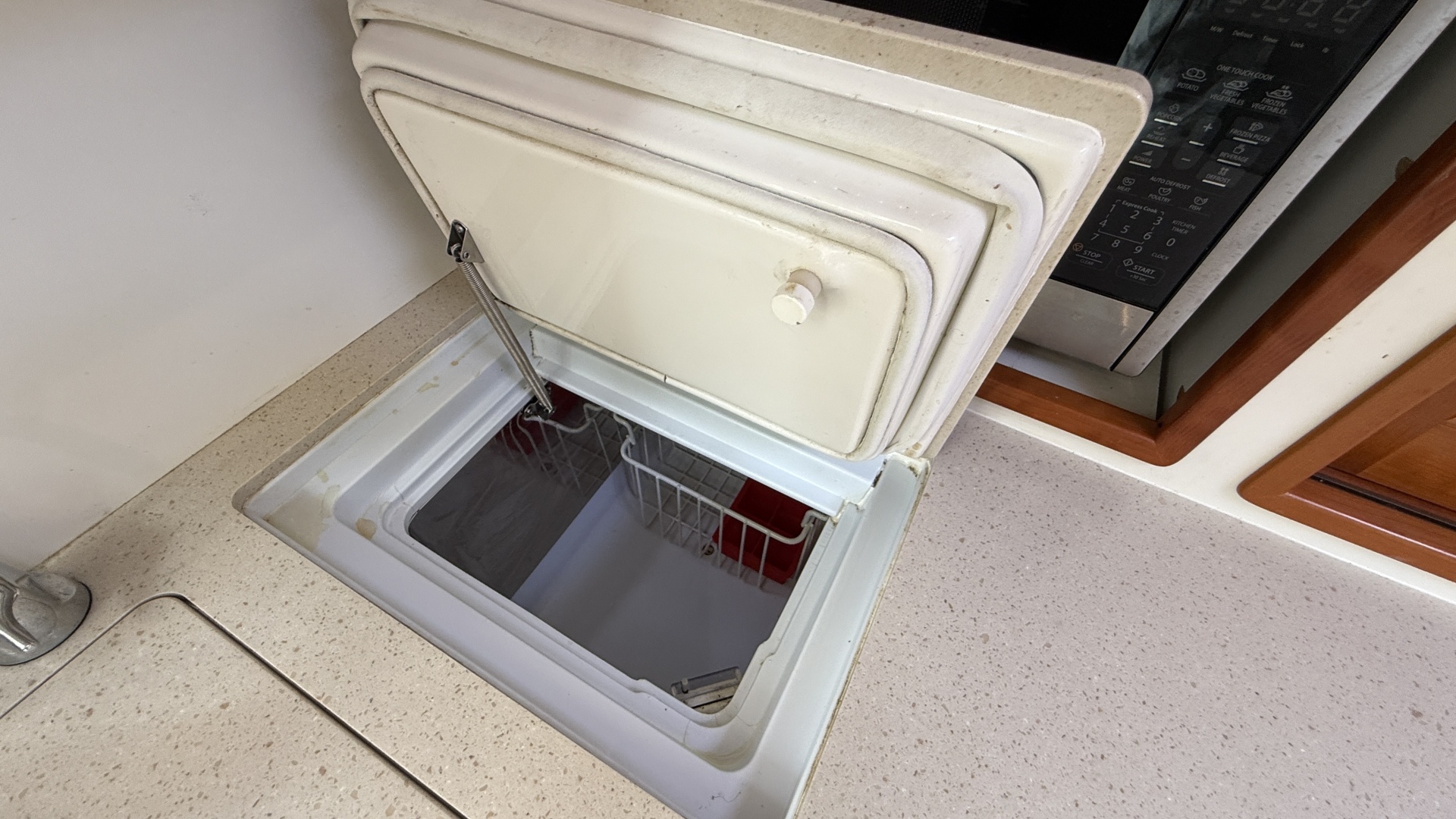

• Indel B153 Freezer compartment w/2 ice trays
• Dry goods cabinet w/”soft close” sliding doors and intermediate shelf w/LED trim lighting.
• Storage locker for pots/pans and cleaning supplies. • Flip lid access panel to large Rubbermaid trash bin. • Overhead safety handrail/towel drying bar.
• Ceramic 2-burner induction cooktop

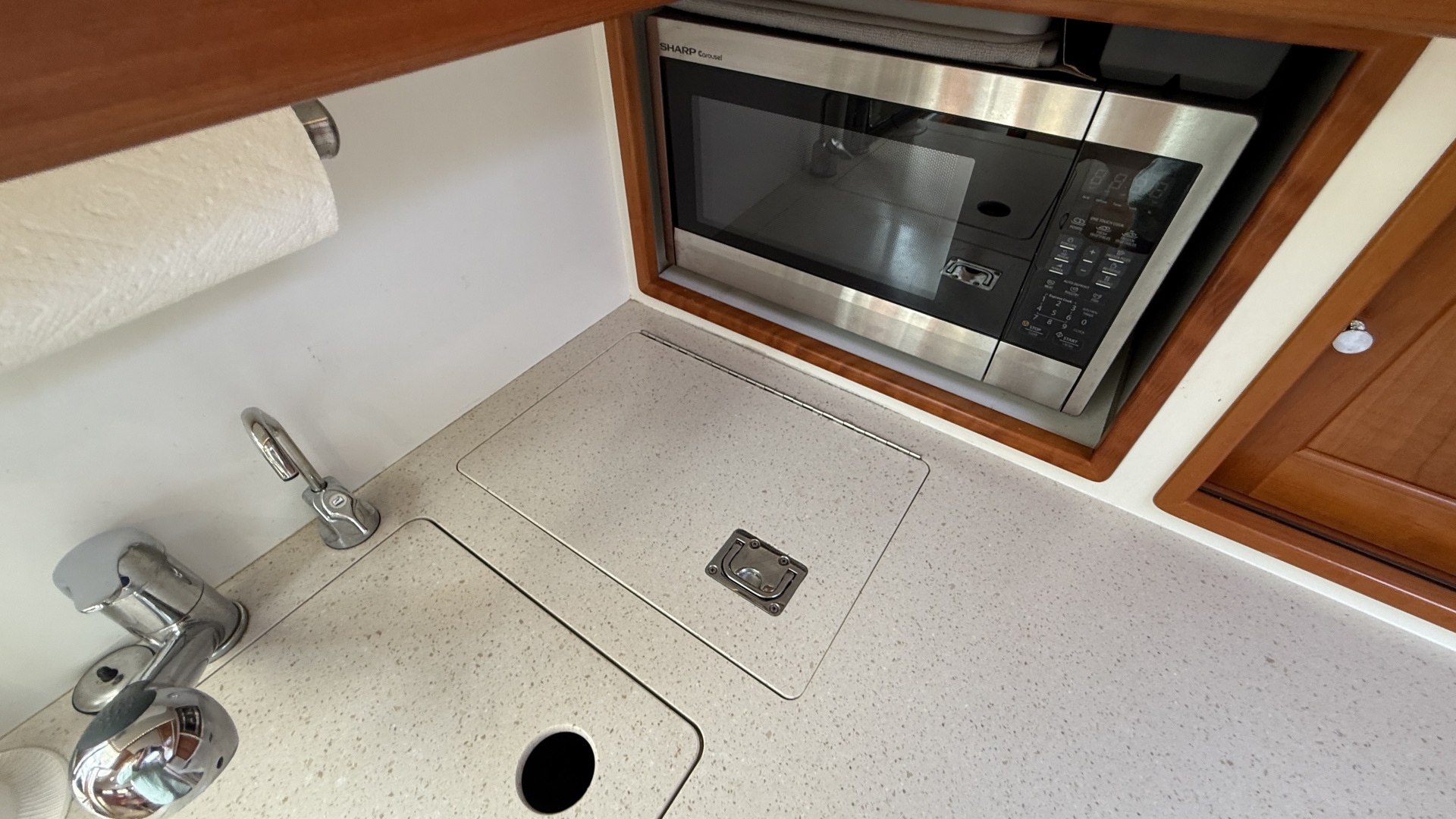

• Sharp 1.1 cu.ft. Microwave Oven
• Double stainless hooks for hotpads and dishtowels.
• Extended shelf with grab-rail fiddle above galley suitable for chart storage, cutting boards, etc.

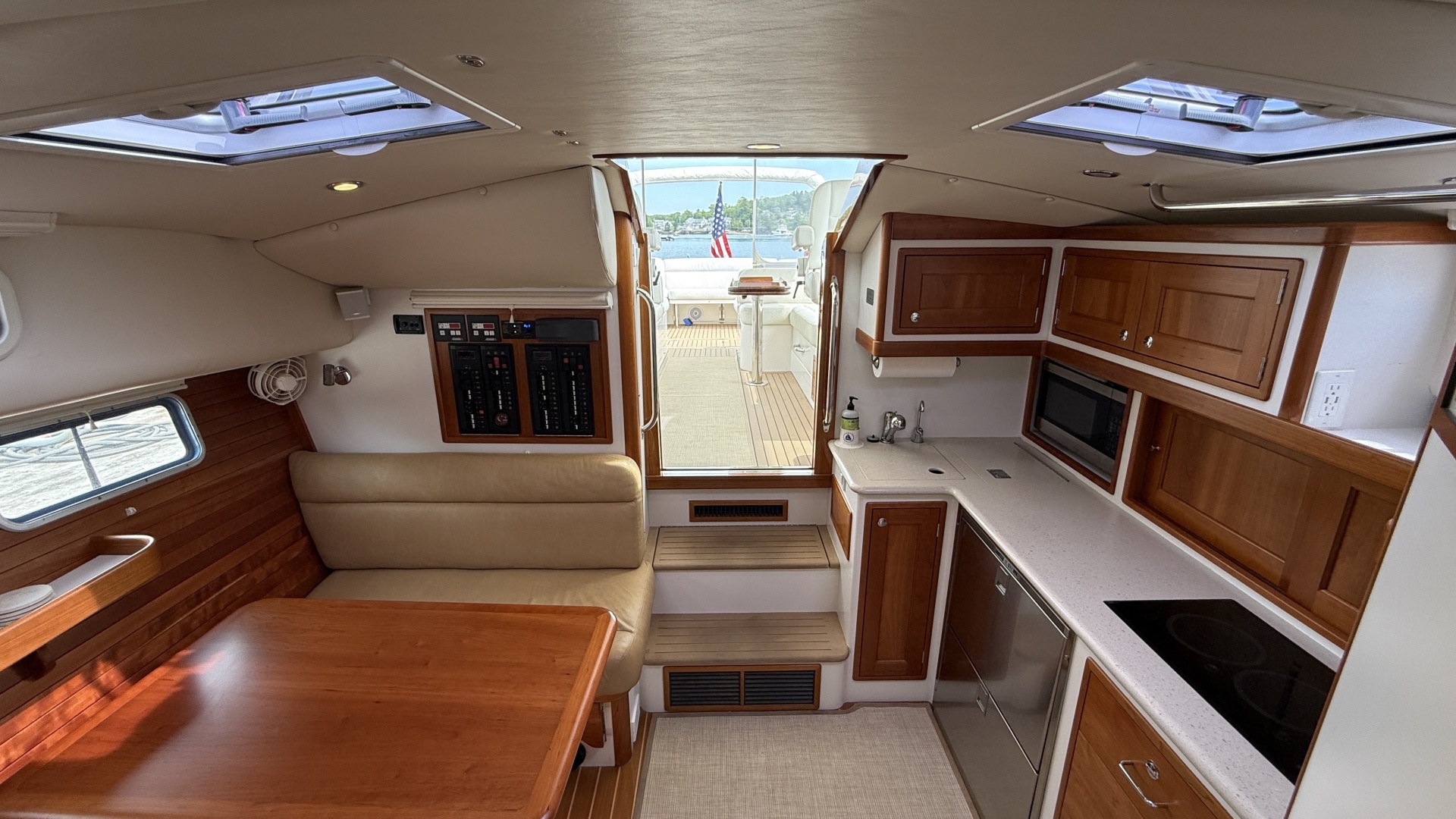

MAIN CABIN

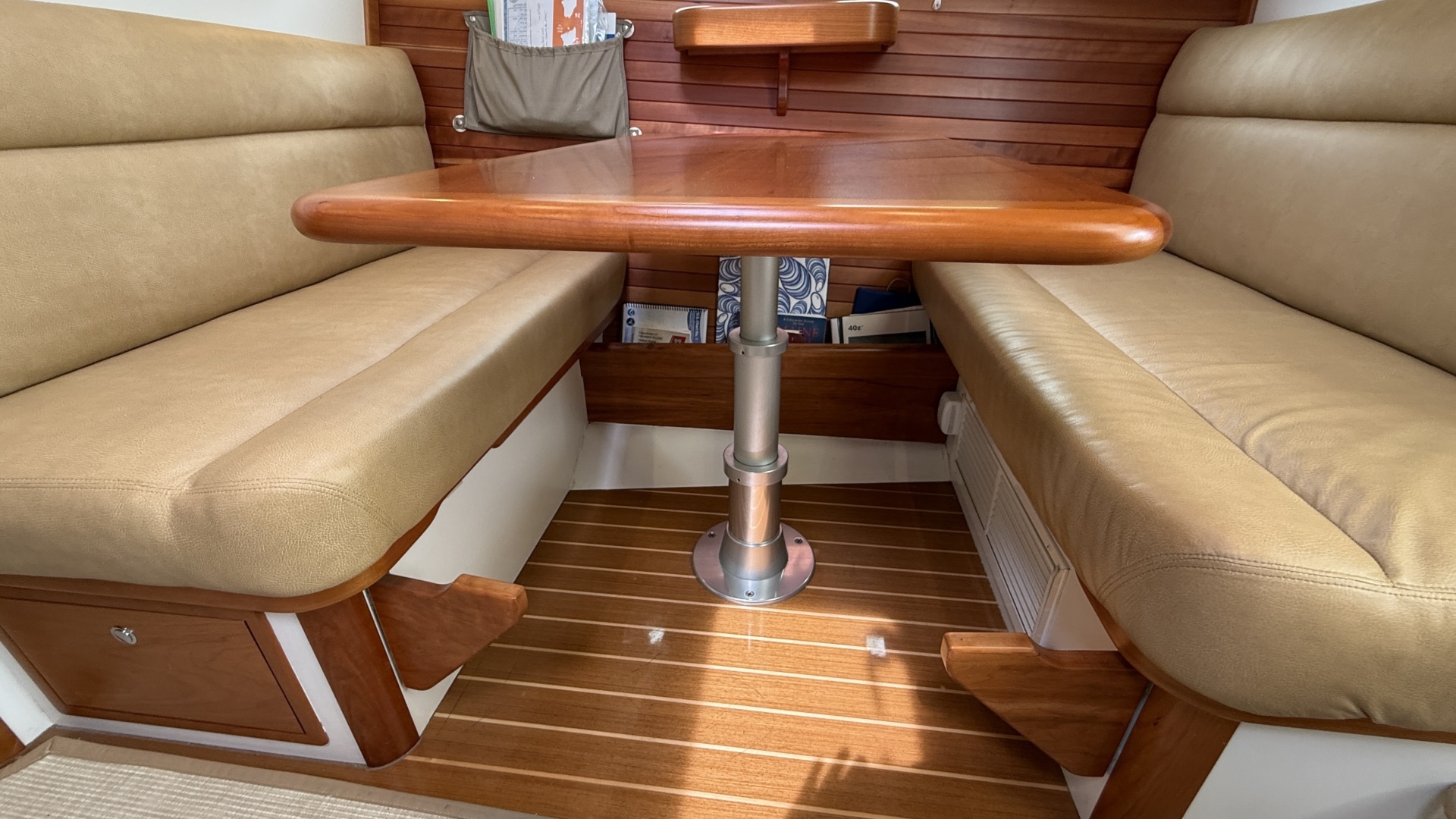

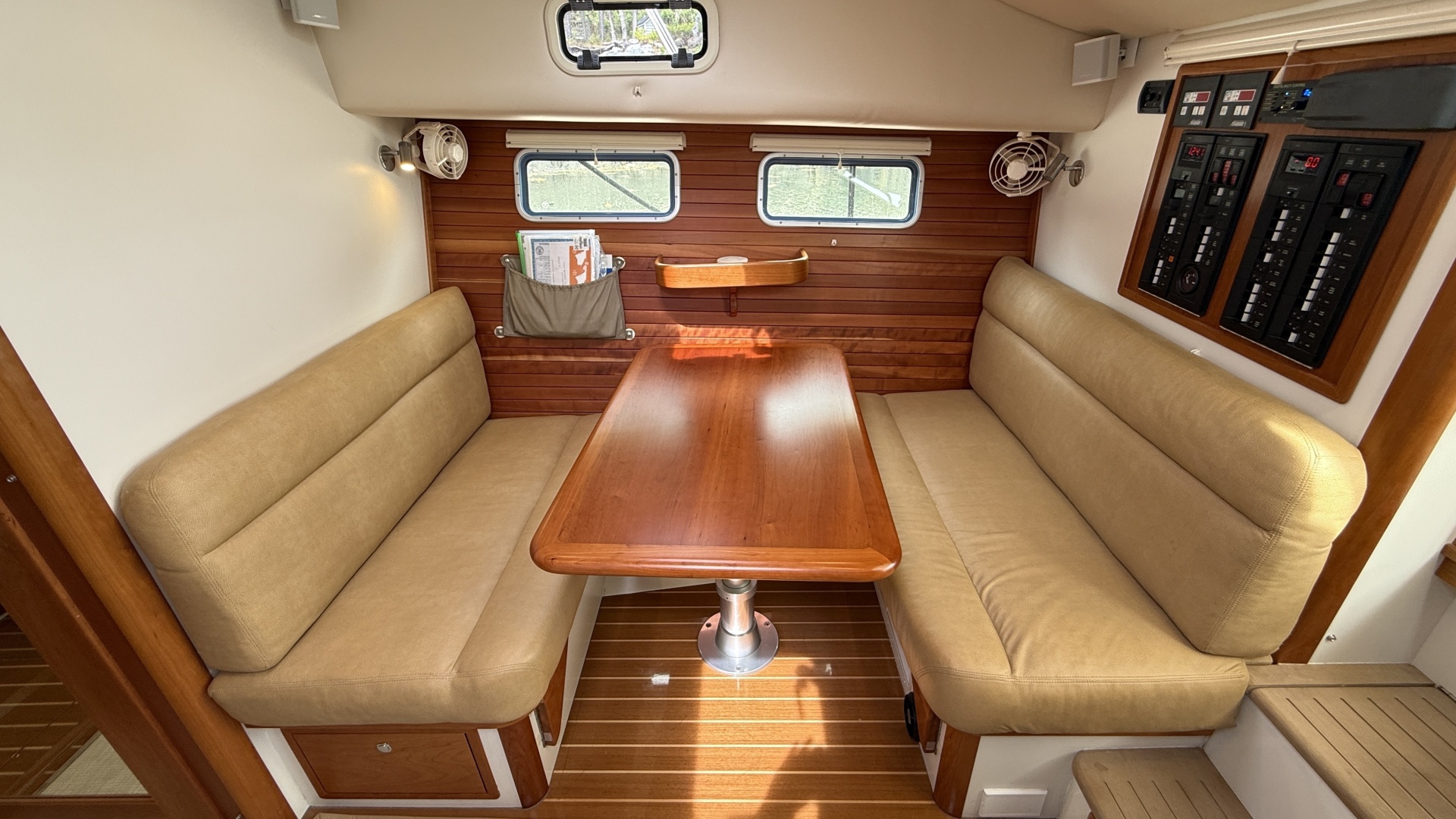

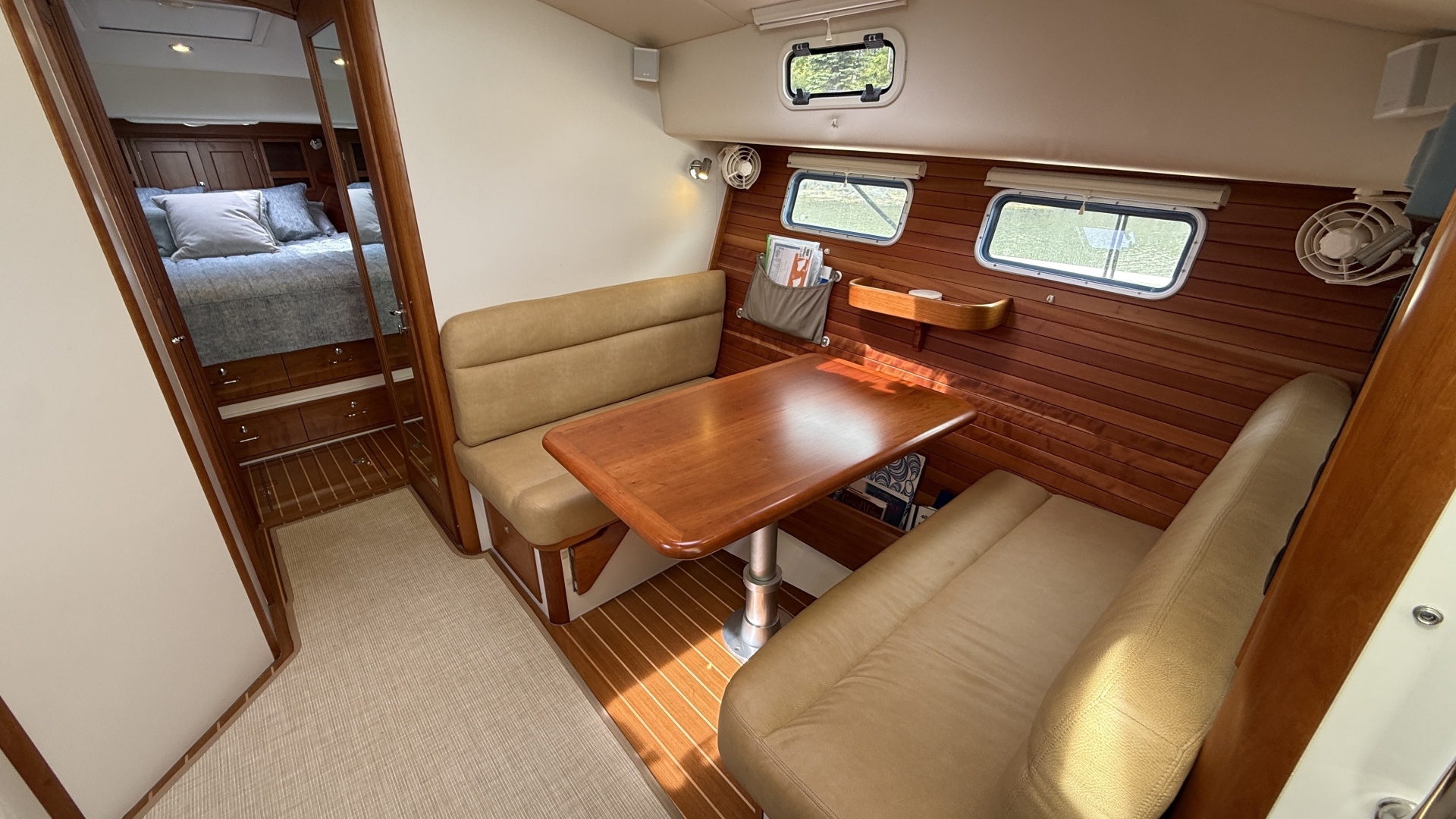

• Spacious dinette table lowers with electronic control to form 40-44” wide, 78” long berth. Heavy opaque “Pullman” curtain anchors to ceiling to form private double cabin with
vertical zipper entry. Double berth filler mattress insert is stored in vinyl bag.
• Large fixed hull ports (2), skylight hatches (2) and cabin portlights (2) maximize ventilation, space and light.
• The companionway is designed for safety to function like a normal stairway with stainless grab rails and only 2 steps w/shoe locker & tool storage under.
• Headroom of 6’4” on centerline.

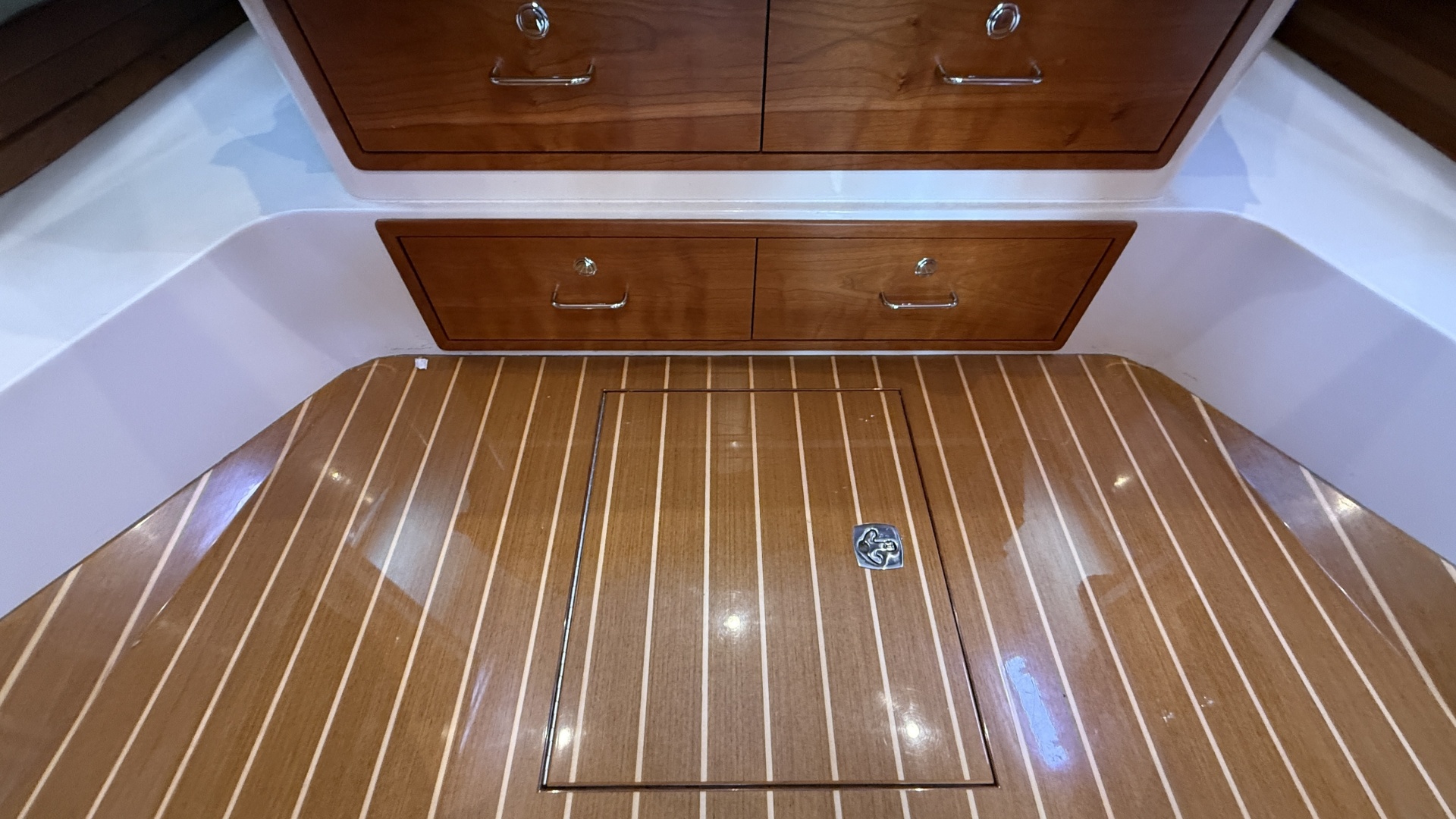

• High-gloss finished teak & holly cabin sole with storage compartment for large plastic bins.
• Egg Shell White Nevamar HPL paneling with American cherry trim with foam backed vinyl headliner & satin- varnished cherry hull battens.

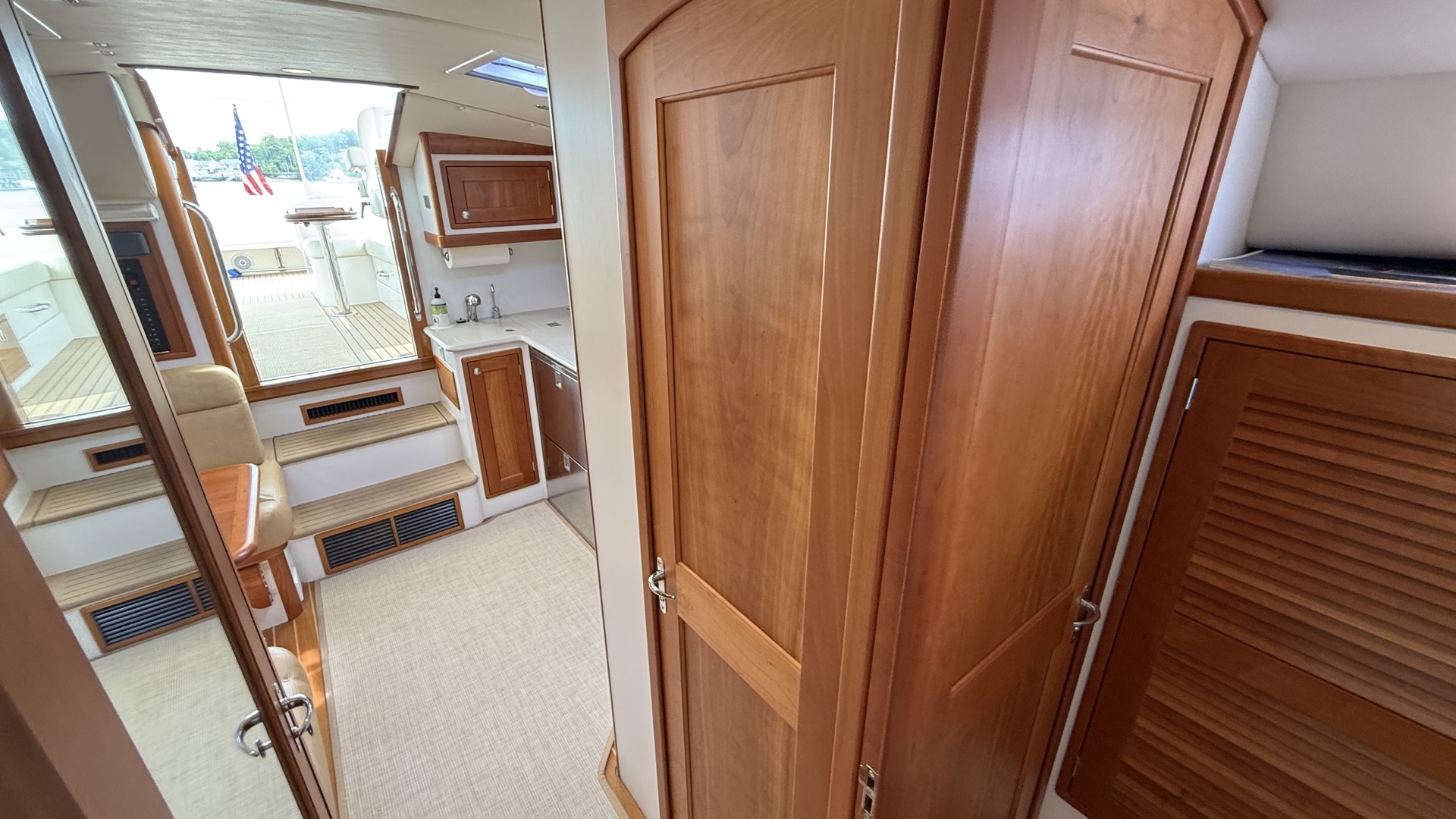

• Access door to dual entry head with integral shower.

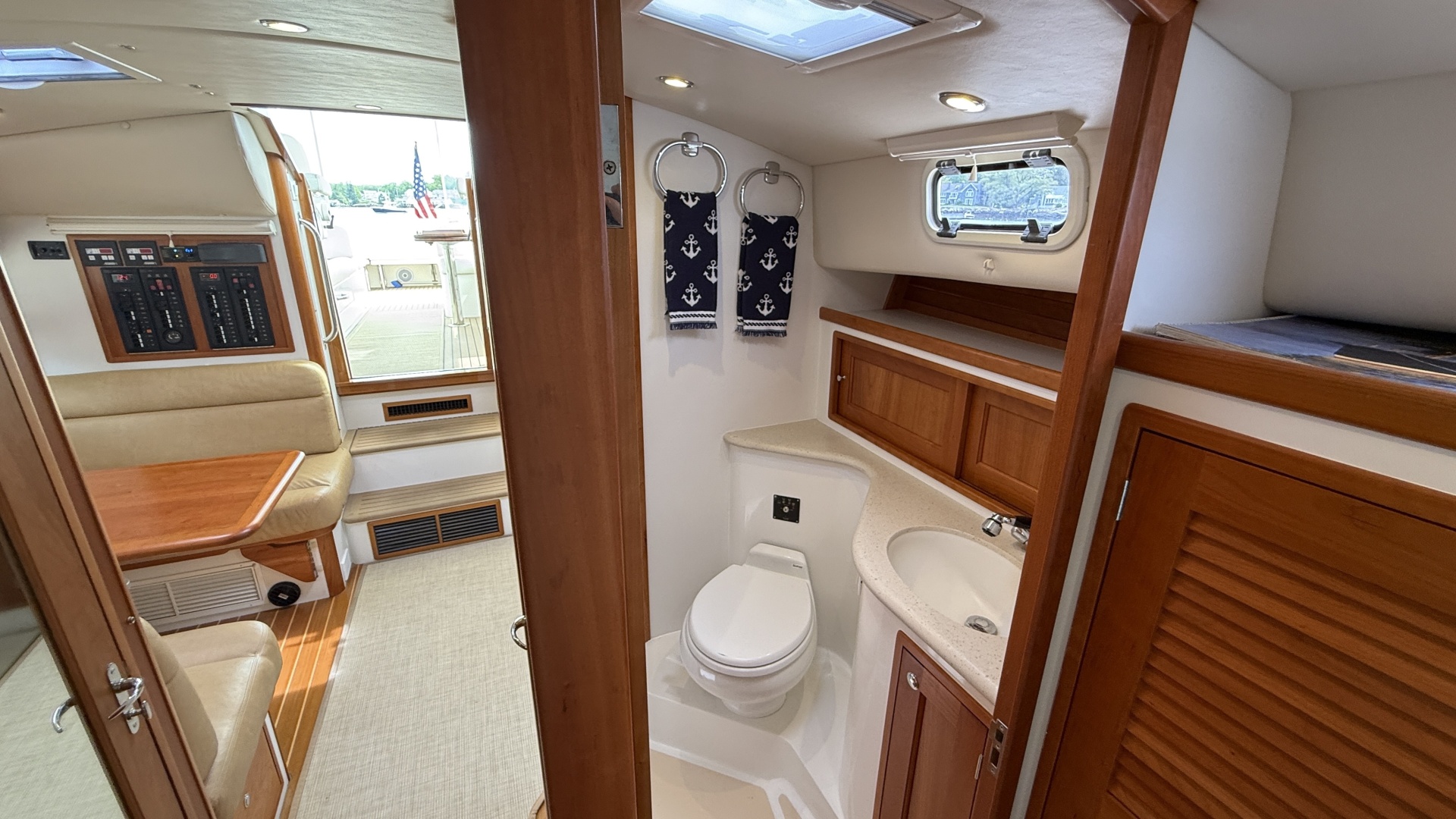

DUAL ENTRY HEAD
• The portside combination head/shower is accessible from either forward or main cabin.
• Corian counter with white Corian oval sink having mixer valve spigot and pullout flexible hose with soft-spray to use as second shower.
• Paneled cherry storage locker outboard with sliding doors and towel storage shelf above.
• Full-length mirrors inside door.
• Locker under sink w/stainless TP holder
• Towel rings and hooks.
• V ent hatch and portlight.
• Floor drain to gray water overboard system

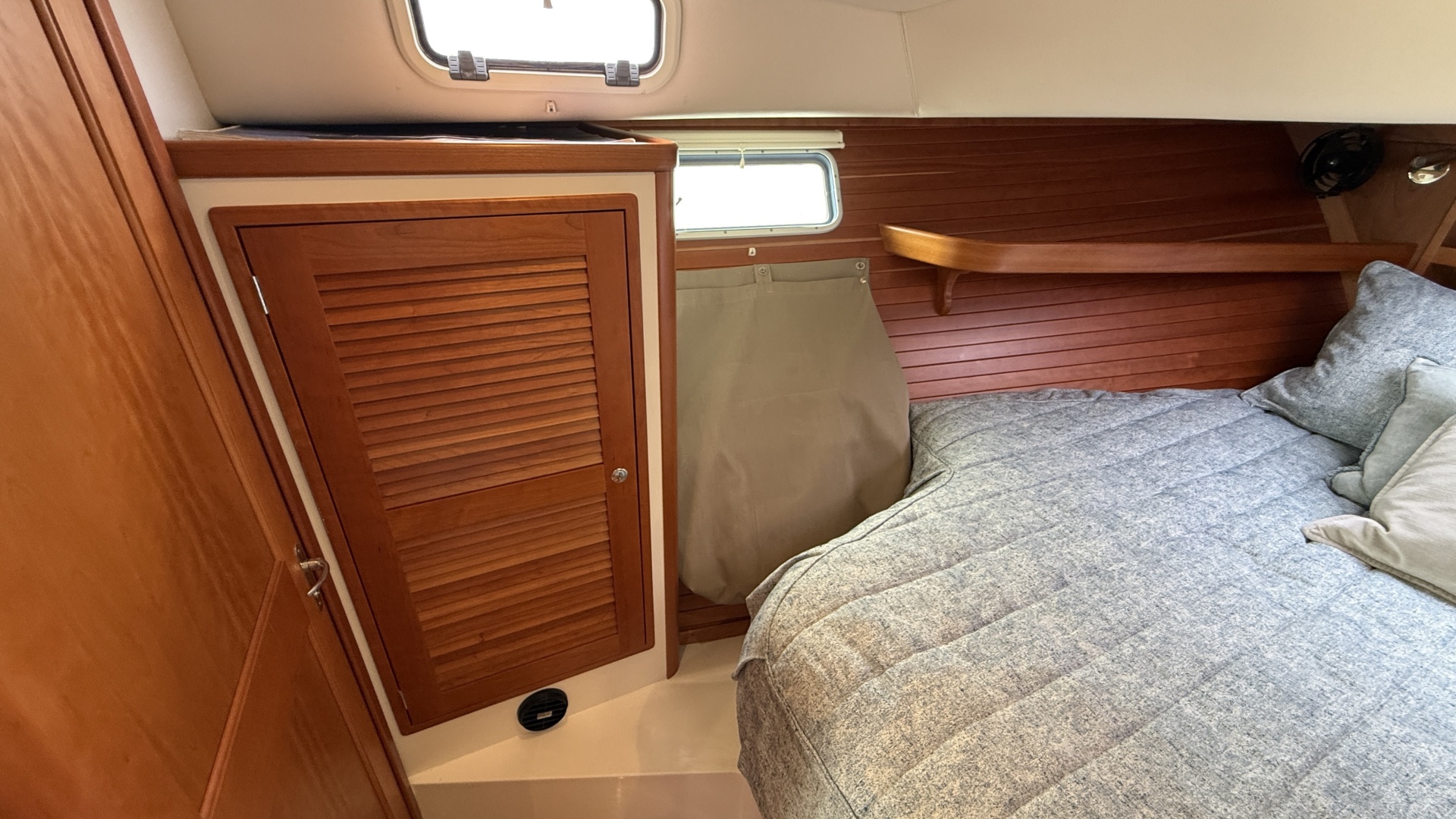

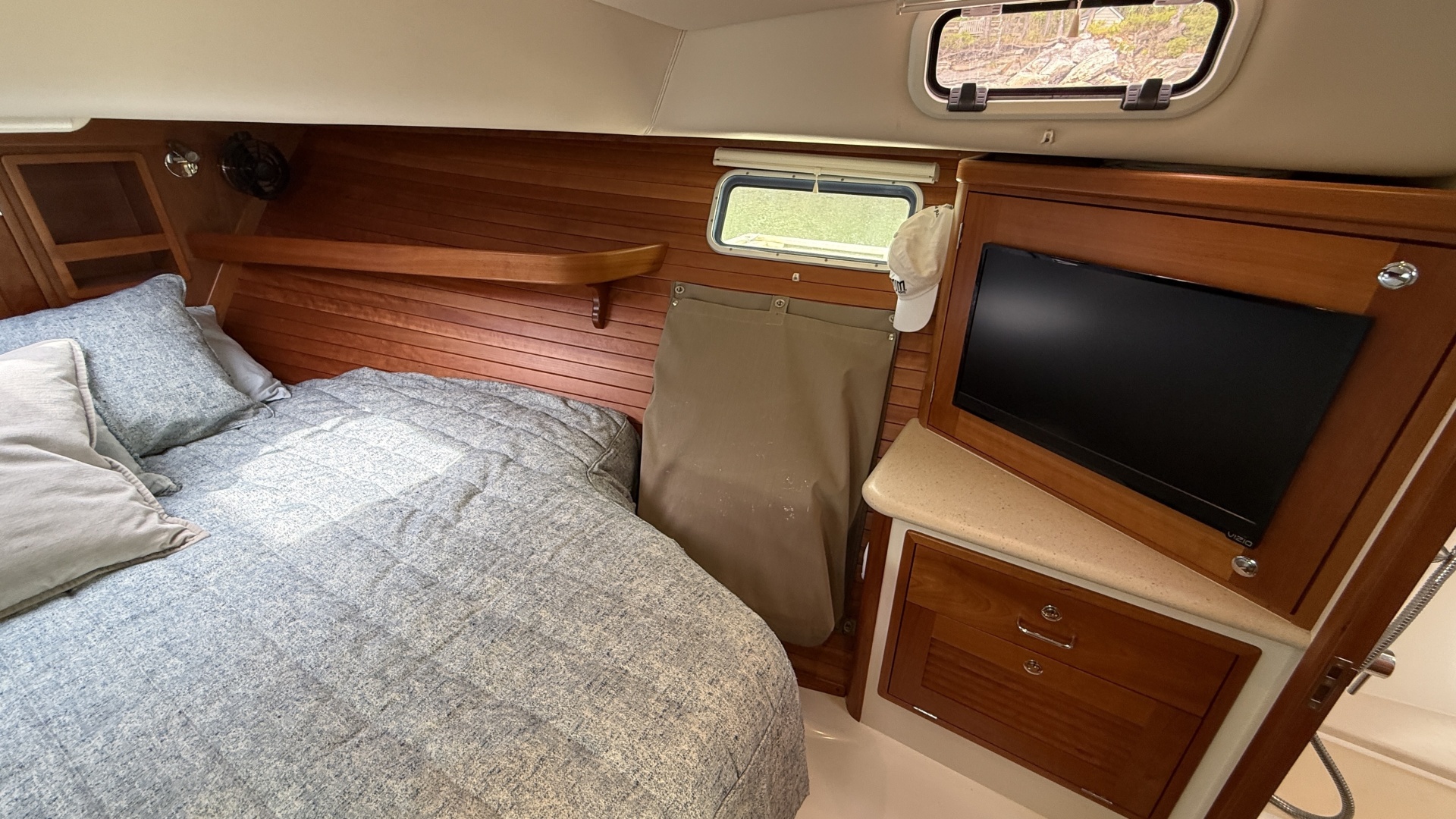

FORWARD CABIN

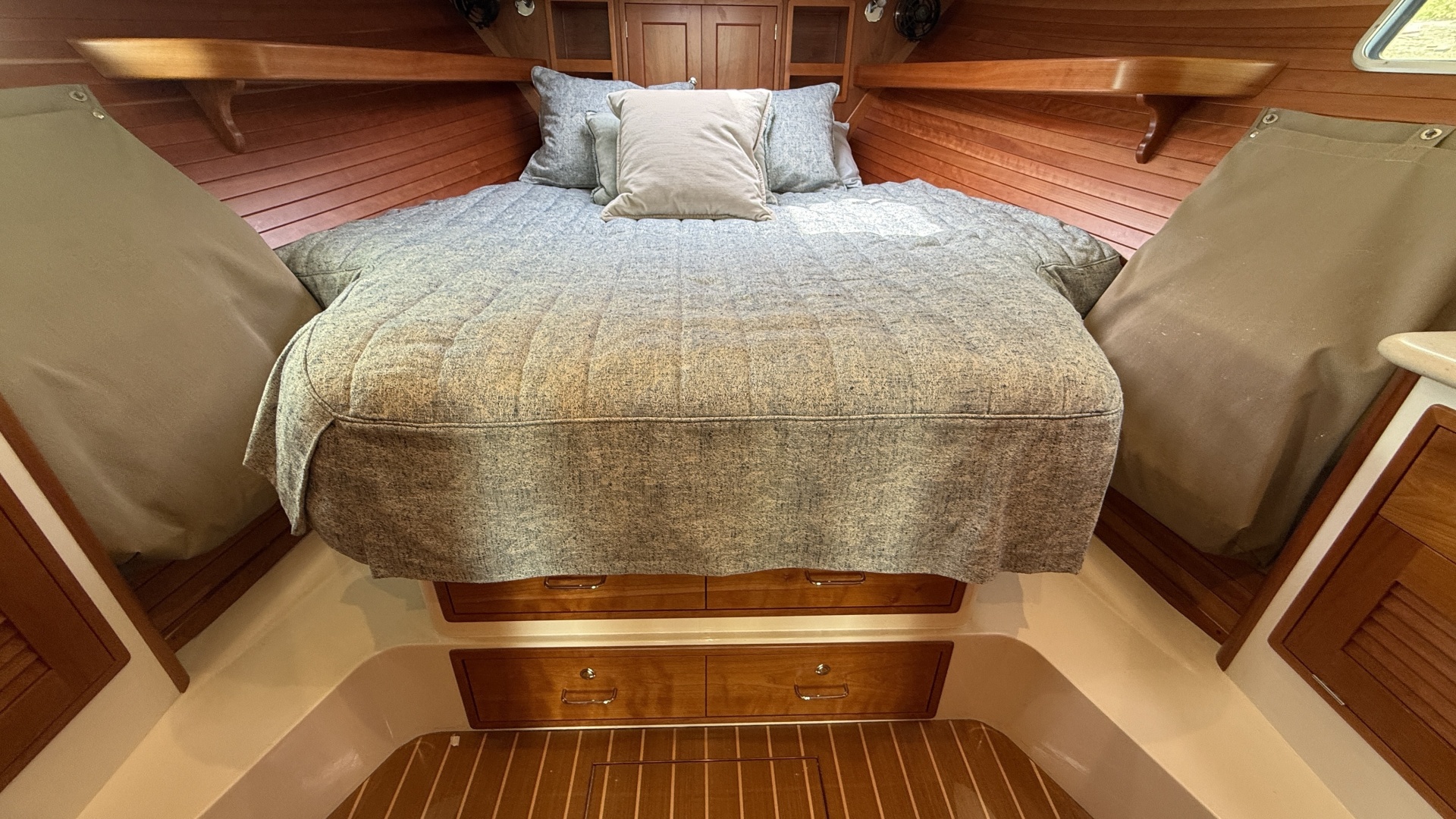

• Fixed 78”x 60” island berth having memory foam mattress covered in durable, water resistant quilted Ultra-Leather in color of choice.

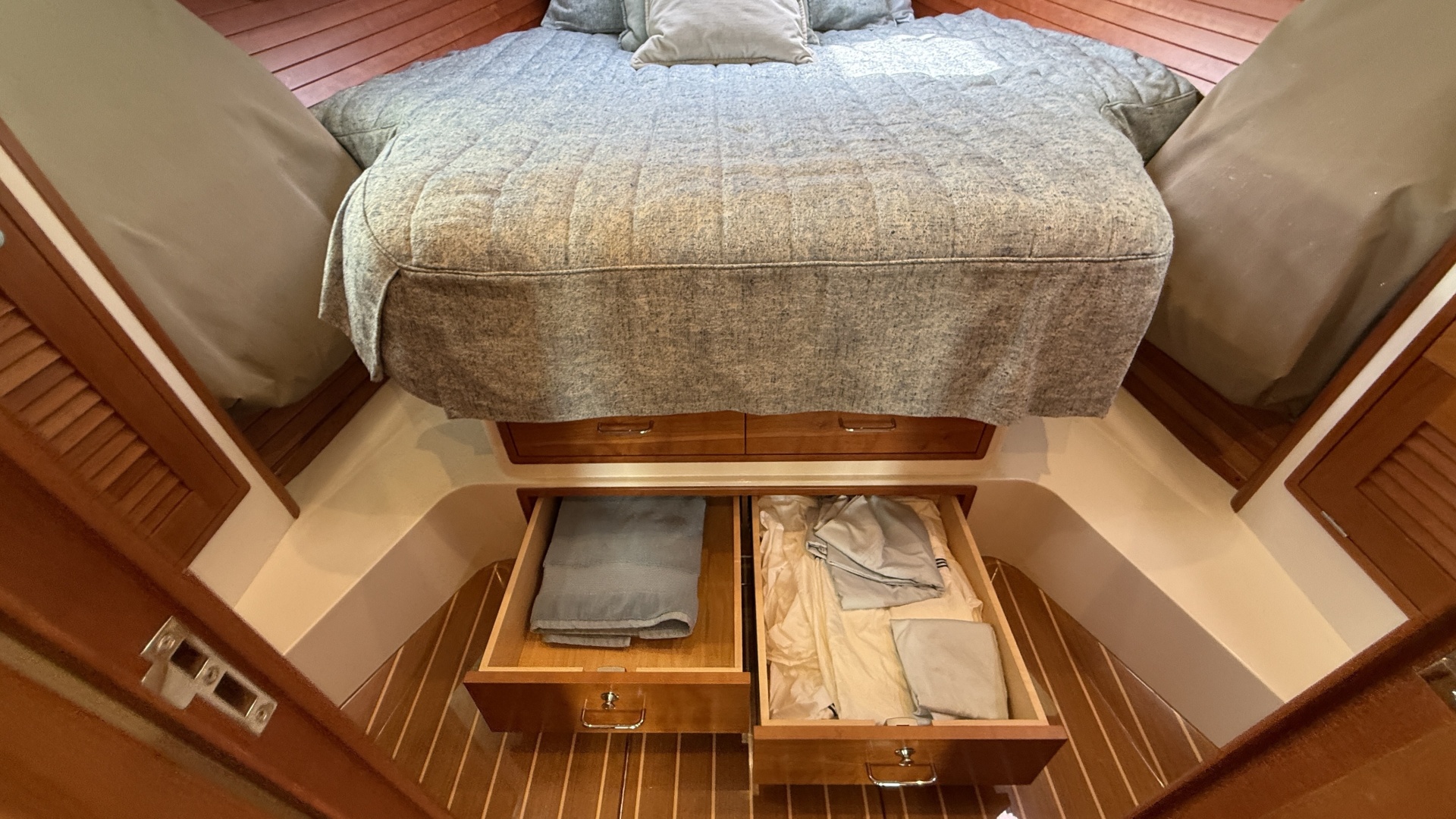

• Storage drawers (4) and below-berth storage bin.
• Storage shelves over berth (P&S) also serve as handholds when rising from berth.
• Framed forward bulkhead with recessed bookcases (2) and double access doors to large forepeak anchor locker.
• Combination bureau/entertainment center with drawer & shoe locker, Corian counter and upper storage shelf.
• Hanging locker to port with storage shelf over.
• Private access to head and ensuite shower.
• Stainless double-hooks (3) for clothing
• Dressing mirror on forward face of entry door.
ENSUITE SHOWER
• Shower access to starboard from forward cabin with seat as well as towel & toiletry storage bin outboard.
• Wall mounted Scandvik shower hose w/turnoff.
• Shaving mirror.
• Towel rings and swimsuit & foul weather gear hooks. • Opening vent hatch & portlight w/screens & shades • Floor drain to gray water overboard system.
